N10226-6212PC - 3M

Description: D-Sub Micro-D Connectors 26P BDMNT RECEP VERT SHLDED THRU-HOLE

Download N10226-6212PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

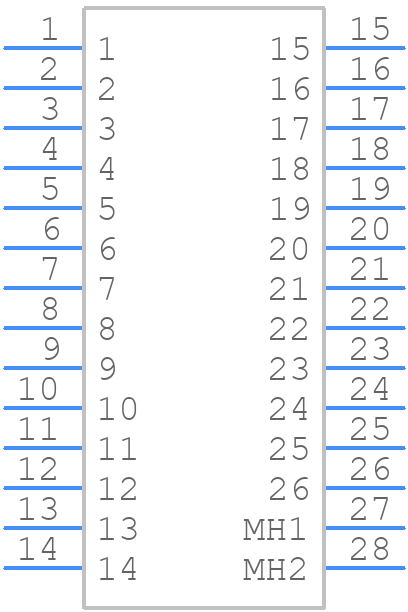

N10226-6212PC - 3M - PCB symbol
click to zoom
PCB Footprints

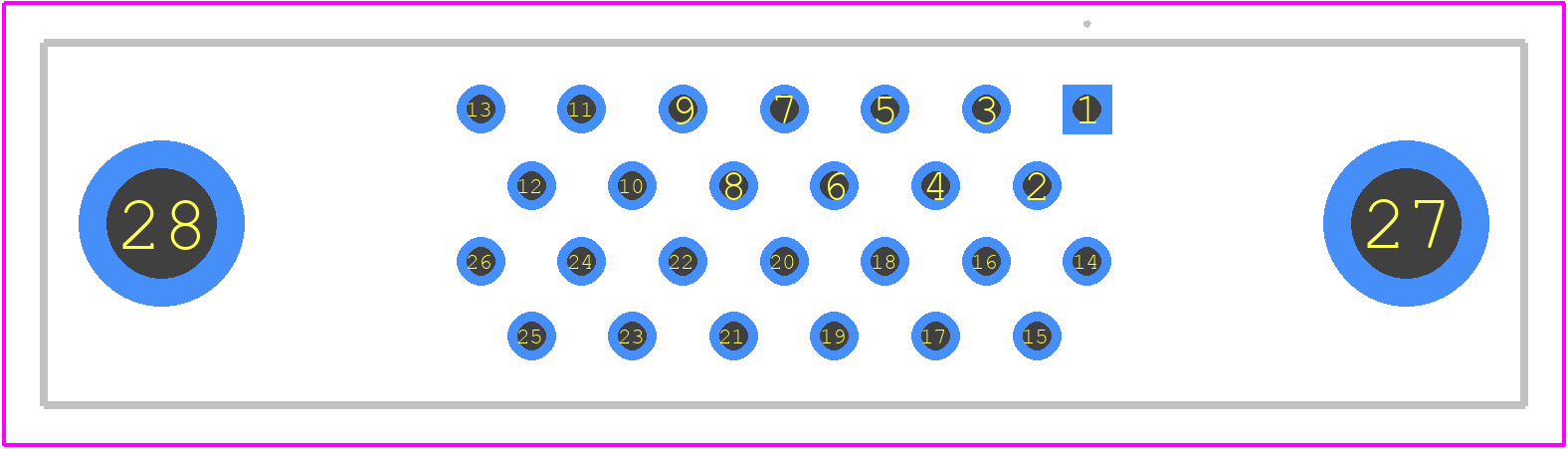

N10226-6212PC - 3M PCB footprint - Other - Other - N10226-6212PC
click to zoom
3D Models
N10226-6212PC - 3M - 3D model - Other - N10226-6212PC
click to zoom

N10226-6212PC Details

  • Manufacturer Part Number:

    N10226-6212PC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.8

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (100)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO
