N10236-52B3PC - 3M

Description: Receptacle MDR PCB 90deg 36 pin 3M MDR 102 Series 1.27mm Pitch 36 Way Right Angle Through Hole Mount Micro-D PCB Connector, Socket

Download N10236-52B3PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

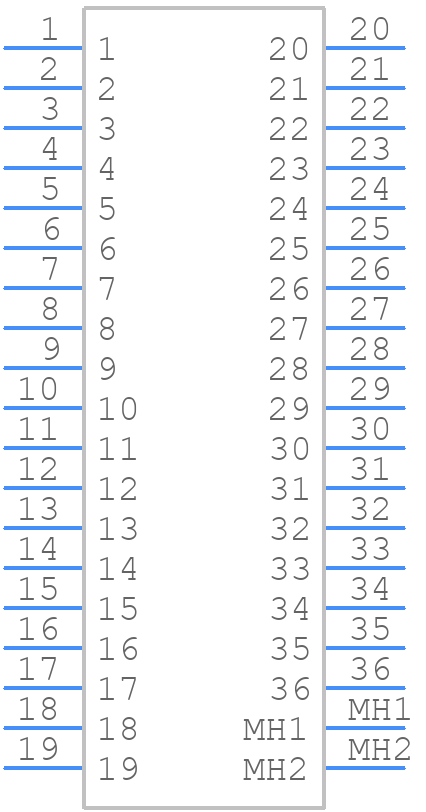

Symbol
N10236-52B3PC - 3M - PCB symbol
click to zoom

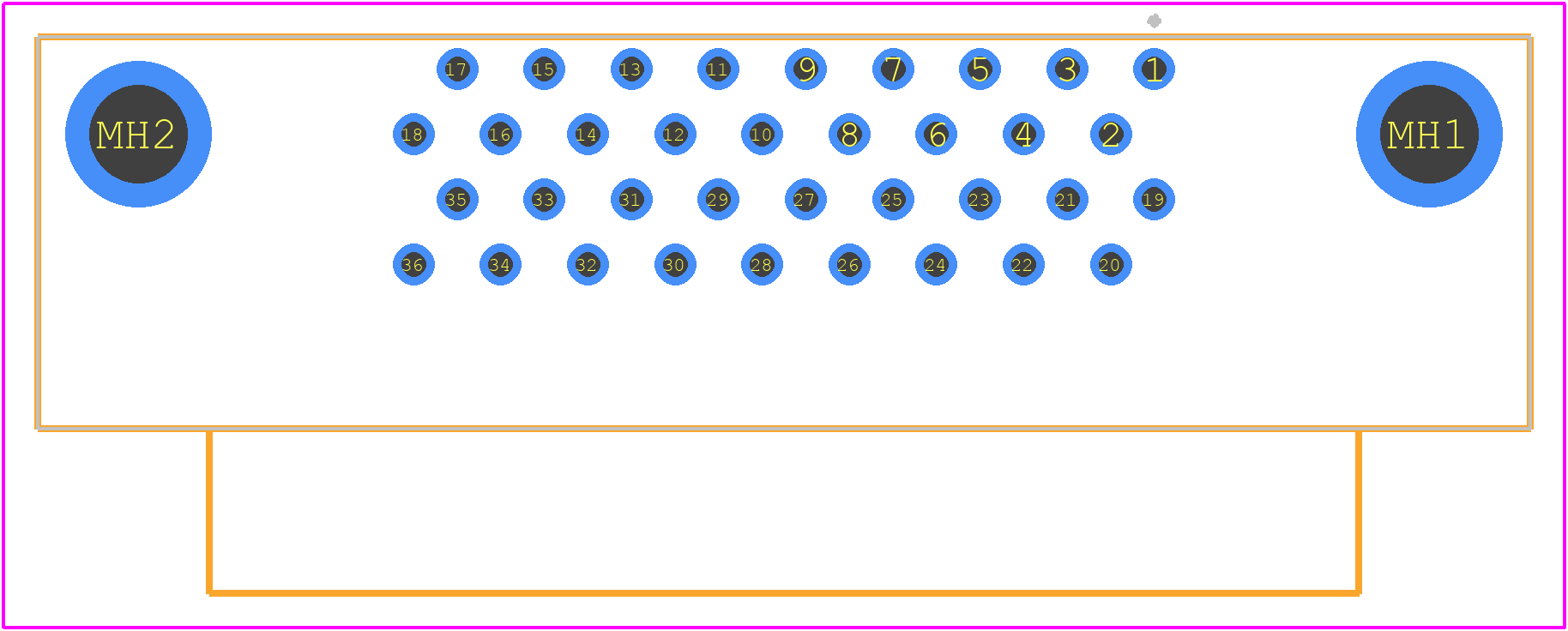

PCB Footprints
N10236-52B3PC - 3M PCB footprint - Other - Other - N10236-52B3PC-2
click to zoom
3D Models
N10236-52B3PC - 3M - 3D model - Other - N10236-52B3PC-2
click to zoom

N10236-52B3PC Details

  • Manufacturer Part Number:

    N10236-52B3PC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 6 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.8

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO

N10236-52B3PC Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals of N10236-52B3PC is 0.5-0.8 Nm (4.4-7.0 in-lbs).
  • Yes, the N10236-52B3PC is designed to withstand high-vibration environments. It meets the IEC 61373 Cat 2 vibration standard.
  • Yes, the N10236-52B3PC is suitable for outdoor use. It has a IP67 rating, which means it can withstand exposure to dust and water.
  • The operating temperature range of the N10236-52B3PC is -40°C to 125°C (-40°F to 257°F).
  • Yes, the N10236-52B3PC can accommodate wire sizes from 20 AWG to 28 AWG, but the recommended wire size is 24 AWG.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

N10236-52B3PC Overview

Use the download button to access the N10236-52B3PC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like N1023, or try a keyword search, such as Telecom and Datacom Connectors
