N10250-52E2PC - 3M

Description: D-Sub Micro-D Connectors 50P R/A SHLD RECEPT BOARDMNT 4-40 THREAD

Download N10250-52E2PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
N10250-52E2PC - 3M - PCB symbol
click to zoom
PCB Footprints

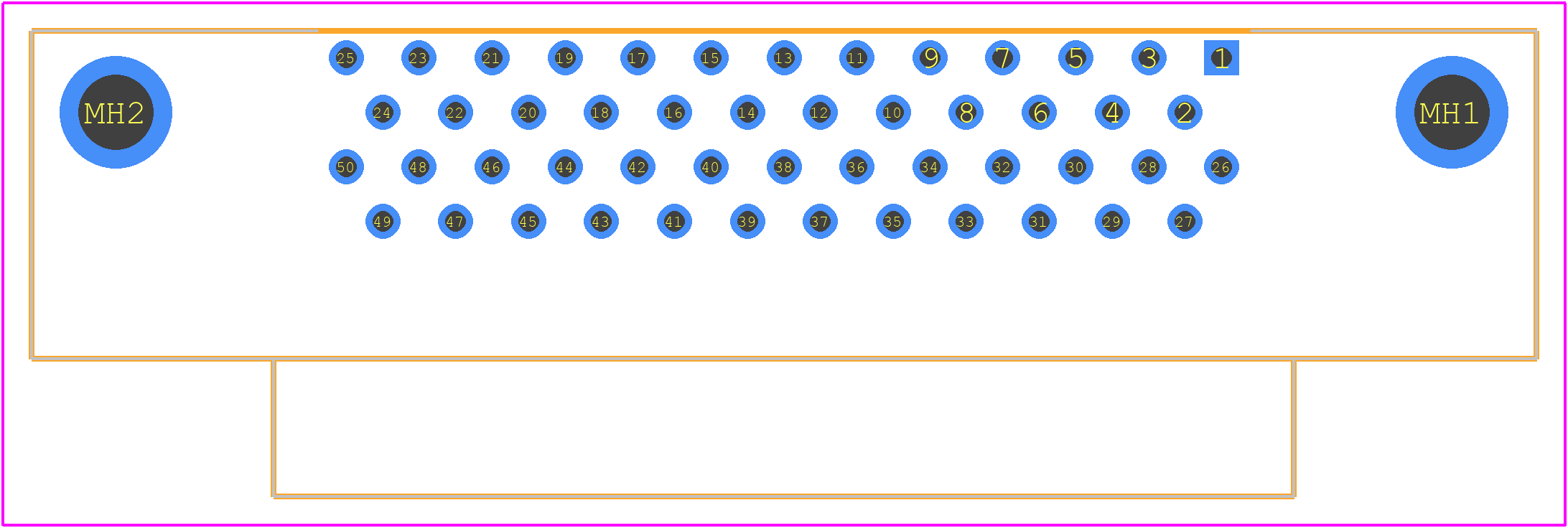

N10250-52E2PC - 3M PCB footprint - Other - Other - N10250-52E2PC-3
click to zoom
3D Models
N10250-52E2PC - 3M - 3D model - Other - N10250-52E2PC-3
click to zoom

N10250-52E2PC Details

  • Manufacturer Part Number:

    N10250-52E2PC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.8

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (80)

  • Contact Finish Termination:

    Gold (Au) - with Nickel (Ni) barrier

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e4

  • MIL Conformance:

    NO
