N10250-6212PC - 3M

Description: D-Sub Micro-D Connectors 50POS 2.54MMSOLDERST THRU-HOLE 50TERMINAL

Download N10250-6212PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
N10250-6212PC - 3M - PCB symbol
click to zoom
PCB Footprints

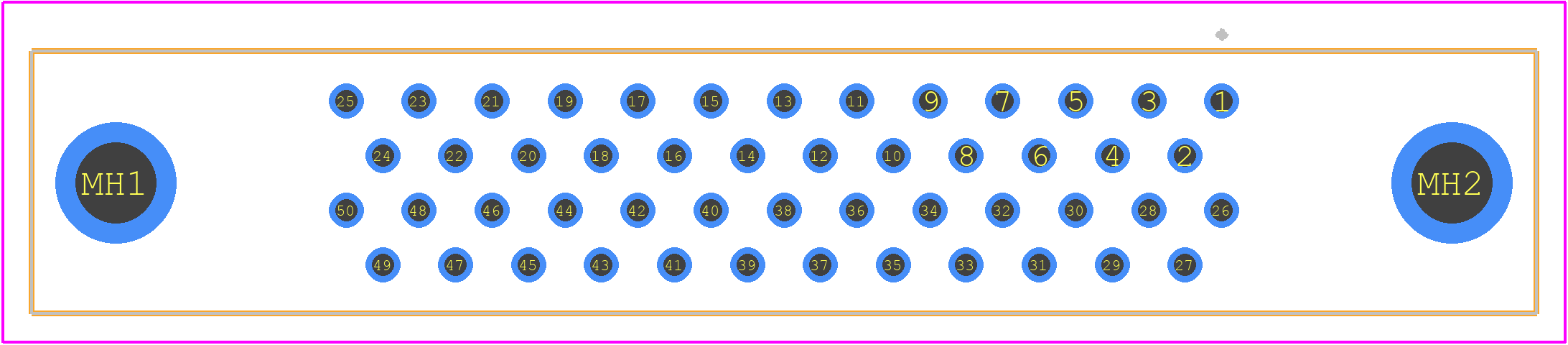

N10250-6212PC - 3M PCB footprint - Other - Other - N10250-6212PC-3
click to zoom
3D Models
N10250-6212PC - 3M - 3D model - Other - N10250-6212PC-3
click to zoom

N10250-6212PC Details

  • Manufacturer Part Number:

    N10250-6212PC

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 6 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    6.8

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    GOLD (30) OVER NICKEL (100)

  • Contact Finish Termination:

    GOLD FLASH OVER NICKEL

  • Contact Material:

    COPPER ALLOY

  • DIN Conformance:

    NO

  • IEC Conformance:

    NO

  • MIL Conformance:

    NO
