The recommended torque for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
Yes, the N10268-52E3PC is designed to withstand vibrations and can be used in applications with moderate to high vibration levels. However, it's crucial to ensure proper mounting and secure the connector to prevent damage or disconnection.
The N10268-52E3PC has a IP67 rating, which means it's protected against dust and water ingress. However, it's not designed for prolonged exposure to direct sunlight, high temperatures, or extreme humidity. For outdoor or harsh environmental use, consider using a connector with a higher IP rating or additional protection measures.
While the datasheet specifies 24 AWG wire, the N10268-52E3PC can accommodate wire sizes between 20 AWG and 28 AWG. However, using wire sizes outside this range may affect the connector's performance and reliability.
The N10268-52E3PC has an operating temperature range of -40°C to 105°C (-40°F to 221°F). Exceeding this temperature range may affect the connector's performance, reliability, or even cause damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
N10268-52E3PC Overview

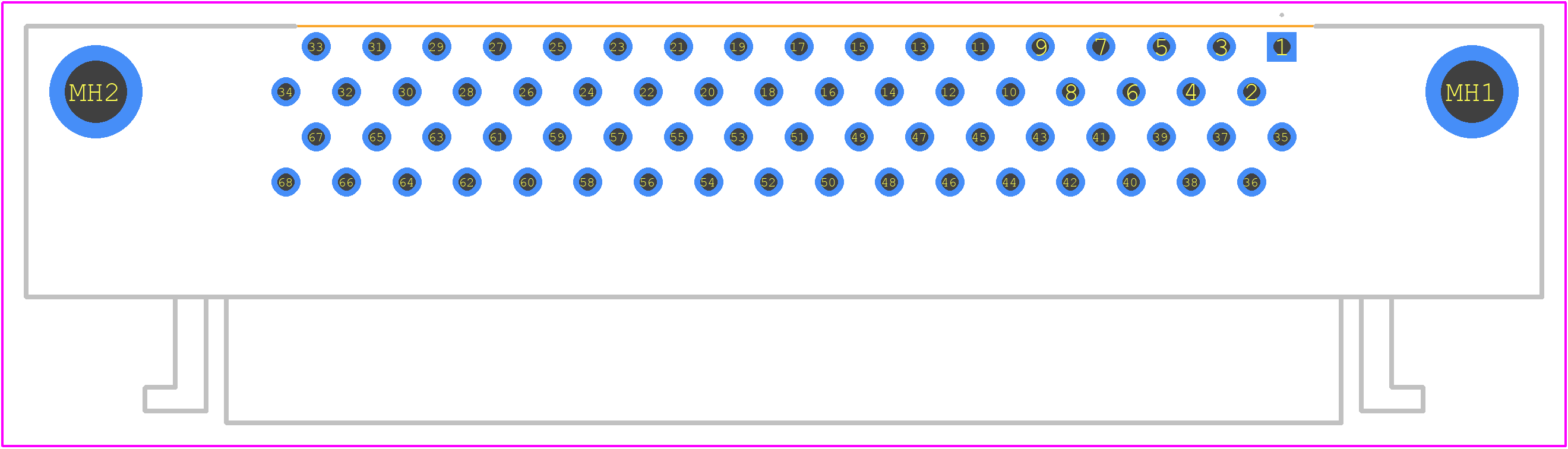

Use the download button to access the N10268-52E3PC schematic symbol and PCB footprint.
To find more CAD model downloads similar to this part, try a partial part number search, like N1026,
or try a keyword search, such as Telecom and Datacom Connectors
