N102A0-52B2PC - 3M

Description: Receptacle MDR PCB 90deg 100 pin 3M MDR 102 Series, 100 Way Right Angle Through Hole Mount Micro-D PCB Connector Socket, 1.27mm Pitch..

Download N102A0-52B2PC Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
N102A0-52B2PC - 3M - PCB symbol
click to zoom
PCB Footprints

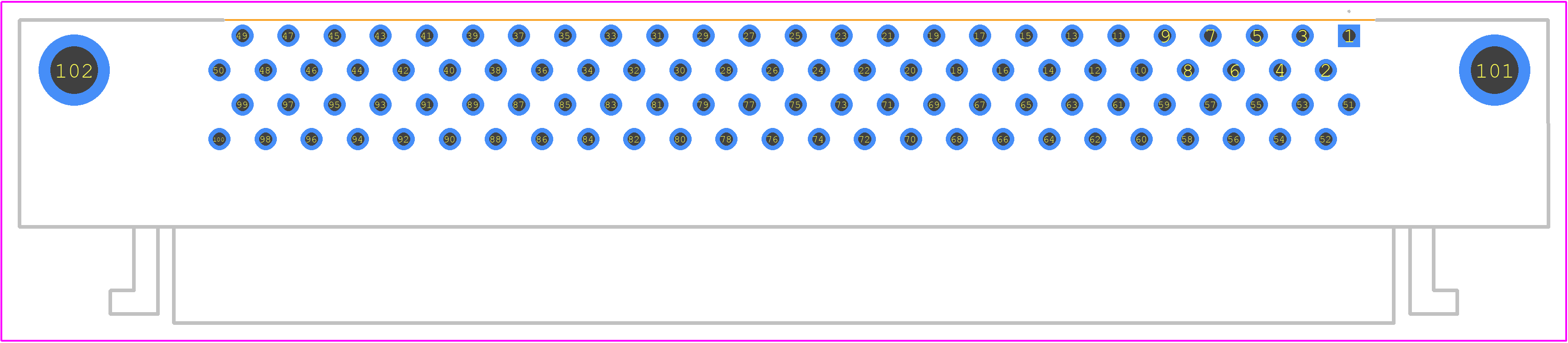

N102A0-52B2PC - 3M PCB footprint - Other - Other - N102A0-52B2PC-3
click to zoom

N102A0-52B2PC Details

  • Manufacturer Part Number:

    N102A0-52B2PC

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.30

  • Factory Lead Time:

    15 Weeks, 6 Days

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    7

  • Connector Type:

    RIBBON D CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    GOLD OVER NICKEL

  • Contact Material:

    NOT SPECIFIED
