N102A0-52E2PC footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

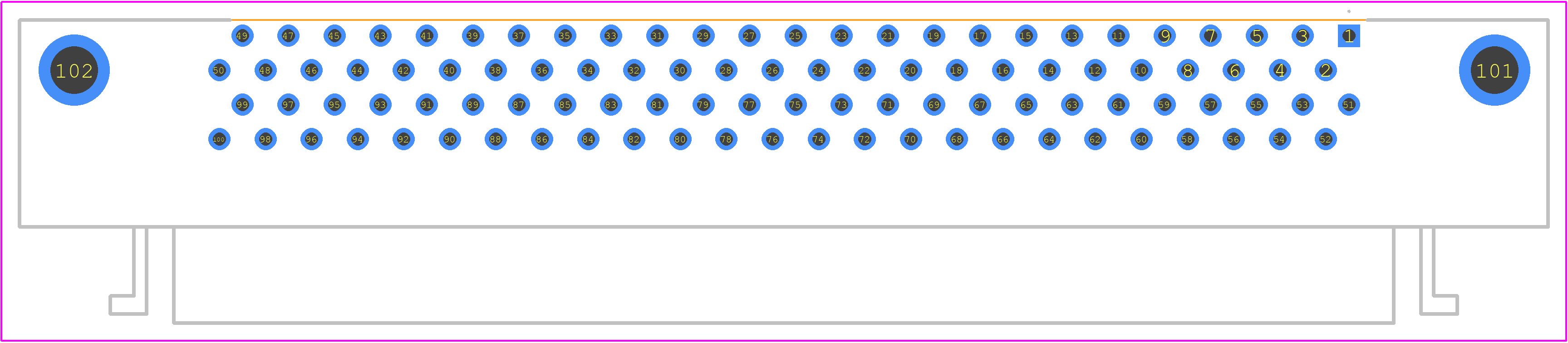

N102A0-52E2PC - 3M PCB footprint - Other - Other - N102A0-52E2PC-1.1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for N102A0-52E2PC
Part Number N102A0-52E2PC
Manufacturer 3M
Pin Count 102
Part Category Connector
Package Category Other
Footprint Name Other - N102A0-52E2PC-1.1
Released Date Oct 10, 2019
Last Modified Date Aug 5, 2025 2:47 PM UTC
Pinout / Pin List Click Here (Member Only)

N102A0-52E2PC Details

Manufacturer Part Number:
N102A0-52E2PC
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
ECCN Code:
EAR99
HTS Code:
8536.69.40.30
Manufacturer:
3M Interconnect
YTEOL:
6.7
Connector Type:
RIBBON D CONNECTOR
Contact Finish Mating:
GOLD (30) OVER NICKEL (80)
Contact Finish Termination:
GOLD OVER NICKEL
Contact Material:
COPPER ALLOY
DIN Conformance:
NO
IEC Conformance:
NO
JESD-609 Code:
e4
MIL Conformance:
NO

N102A0-52E2PC Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the N102A0-52E2PC is designed to withstand vibrations up to 10G (10-2000 Hz) and is suitable for use in high-vibration environments.
Yes, the N102A0-52E2PC is rated for outdoor use and can withstand temperatures from -40°C to 125°C (-40°F to 257°F).
The maximum current rating for each contact is 3A.
No, the N102A0-52E2PC is designed for use with wire gauges 20 AWG to 24 AWG. Using a larger wire gauge may not provide a reliable connection.

Trust Checks

Community Provided

System Verified

Community Approved

N102A0-52E2PC Overview

Use the download button to access the N102A0-52E2PC schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like N102A, or try a keyword search, such as Telecom and Datacom Connectors
