- Part Number N112BPCX
- Manufacturer Switchcraft
- Pin Count 5
- Part Category Connector
- Package Category Other
- Footprint Name Other - N112BPCX
- Released Date Jan 12, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
N112BPCX Details
-
Manufacturer Part Number:
N112BPCX
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Package Description:
ROHS COMPLIANT
-
Country Of Origin:
USA
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.10
-
Manufacturer:
Switchcraft Conxall
-
Body Breadth:
0.615 inch
-
Body Depth:
0.828 inch
-
Body Length:
0.615 inch
N112BPCX Frequently Asked Questions (FAQs)
-
The recommended torque value for the N112BPCX connector is 10-12 in-lbs (1.1-1.4 Nm) for the coupling nut and 5-7 in-lbs (0.6-0.8 Nm) for the backshell.
-
Yes, the N112BPCX connector is designed to withstand high-vibration environments and is suitable for applications where shock and vibration are a concern.
-
Yes, the N112BPCX connector is designed to operate in harsh environments, including extreme temperatures, humidity, and exposure to chemicals and fluids.
-
Yes, the N112BPCX connector is part of the N-Series connector family and is compatible with other connectors in the same series, including the N111, N112, and N113.
-
The N112BPCX connector is designed to operate up to 2 GHz, making it suitable for high-frequency applications.
Trust Checks
Expert Contribution
System Verified
Community Approved
N112BPCX Overview

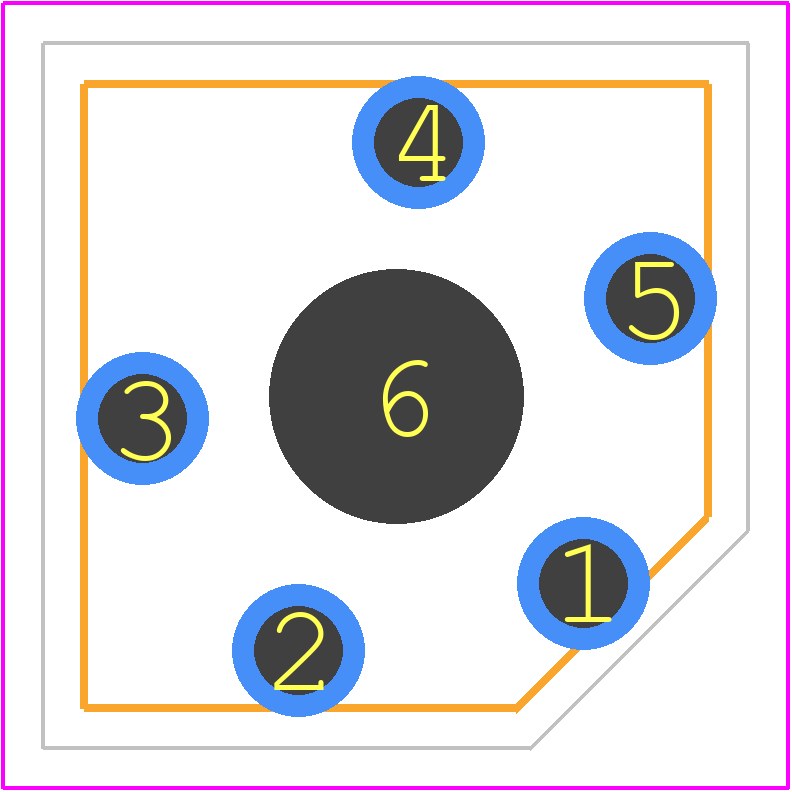

Use the download button to access the N112BPCX schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like N112B,
or try a keyword search, such as Audio/RCA Connectors
