The recommended torque for the screw terminals of N15TS-502A3030 is 0.5 Nm to 1.5 Nm, depending on the wire size and type.
Yes, the N15TS-502A3030 is designed to withstand high-vibration environments, with a vibration resistance of up to 10g (IEC 60068-2-6). However, it's recommended to consult with Amphenol Piher's application engineers for specific vibration profiles and mounting recommendations.
The maximum wire size that can be used with the N15TS-502A3030 is 1.5 mm² (AWG 16). Using larger wire sizes may require additional processing or specialized tools.
The N15TS-502A3030 has an IP67 rating, which means it can withstand temporary immersion in water up to 1 meter for 30 minutes. However, it's recommended to consult with Amphenol Piher's application engineers for specific environmental requirements and potential customization options.
The N15TS-502A3030 is rated for operation up to 125°C (257°F). However, the sensor's accuracy and lifespan may be affected at extreme temperatures. Consult with Amphenol Piher's application engineers for specific temperature requirements and potential customization options.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
N15TS-502A3030 Overview

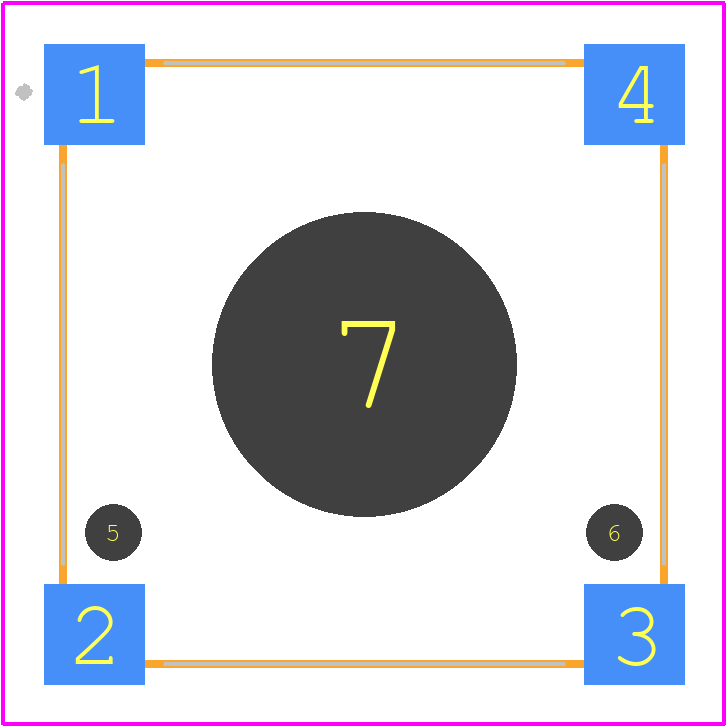

Use the download button to access the N15TS-502A3030 schematic symbol, PCB footprint, and 3D model.
