N24RF04DTPT3G - onsemi

Description: Contactless Transmission of Data; ISO 15693 / ISO 18000−3 Mode1 Compliant; Vicinity Range Communication (up to 150 cm); Air Interface Communication at 13.56 MHz (HF); To tag: ASK Modulation with 1.65 Kbit/s or 26.48 Kbit/s Data Rate; From Tag: Load Modulation Using Manchester Coding with 423 kHz and 484 kHz Subcarriers in Low (6.6 Kbit/s) or high (26 Kbit/s) Data Rate Mode. Supports the 53 Kbit/s Data Rate with Fast Commands; Read & Write 32−bit Block Mode; Anti−collision Support; 64−bit Unique Identifier (

Download N24RF04DTPT3G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

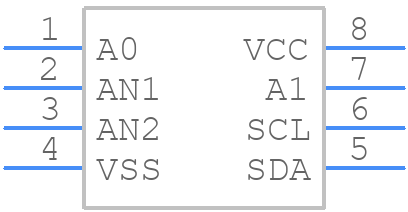

N24RF04DTPT3G - onsemi - PCB symbol
click to zoom
PCB Footprints
N24RF04DTPT3G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - TSSOP8 4.4x3 CASE 948AL ISSUE O
click to zoom
3D Models
N24RF04DTPT3G - onsemi - 3D model - Small Outline Packages - TSSOP8 4.4x3 CASE 948AL ISSUE O
click to zoom

N24RF04DTPT3G Details

  • Manufacturer Part Number:

    N24RF04DTPT3G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    TSSOP-8

  • Manufacturer Package Code:

    948AL

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.31.00.30

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • JESD-609 Code:

    e4

  • Moisture Sensitivity Level:

    1

  • Peak Reflow Temperature (Cel):

    260

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Time@Peak Reflow Temperature-Max (s):

    30

  • uPs/uCs/Peripheral ICs Type:

    NFC CONTROLLER

N24RF04DTPT3G Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the N24RF04DTPT3G is 2.7V to 3.6V, with a typical voltage of 3.0V.
  • To ensure reliable data retention, it's essential to follow the recommended write endurance cycles (typically 100,000 cycles), avoid excessive voltage fluctuations, and maintain a stable operating temperature within the specified range (-40°C to 85°C).
  • The N24RF04DTPT3G supports a maximum clock frequency of 1 MHz, with a typical frequency of 400 kHz.
  • To handle bus contention and arbitration, implement a suitable arbitration mechanism, such as a token-passing protocol or a master-slave architecture, to ensure that only one master device accesses the bus at a time.
  • The WP pin is used to enable or disable write protection for the entire memory array. When WP is low, the device is in write-protect mode, and any write attempts will be ignored.
