N25Q032A11ESE40F - Micron

Description: Micron N25Q032A11ESE40F, SPI NOR 32Mbit Flash Memory, 7ns, 8-Pin SOIC W

Download N25Q032A11ESE40F Model

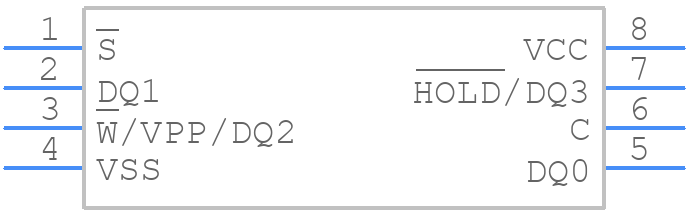

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
N25Q032A11ESE40F - Micron PCB footprint - Small Outline Packages - Small Outline Packages - so8-w
click to zoom

N25Q032A11ESE40F Details

  • Manufacturer Part Number:

    N25Q032A11ESE40F

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    SOIC

  • Package Description:

    SOP2-8

  • Pin Count:

    8

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.32.00.51

  • Manufacturer:

    Micron Technology Inc

  • YTEOL:

    0

  • Clock Frequency-Max (fCLK):

    108 MHz

  • Data Retention Time-Min:

    20

  • Endurance:

    100000 Write/Erase Cycles

  • JESD-30 Code:

    S-PDSO-G8

  • Length:

    5.285 mm

  • Memory Density:

    33554432 bit

  • Memory IC Type:

    FLASH

  • Memory Width:

    8

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of Words:

    4194304 words

  • Number of Words Code:

    4000000

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Organization:

    4MX8

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.3

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE

  • Parallel/Serial:

    SERIAL

  • Peak Reflow Temperature (Cel):

    NOT SPECIFIED

  • Programming Voltage:

    1.8 V

  • Seated Height-Max:

    2.16 mm

  • Serial Bus Type:

    QSPI

  • Standby Current-Max:

    0.0001 A

  • Supply Current-Max:

    0.02 mA

  • Supply Voltage-Max (Vsup):

    2 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Technology:

    CMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    NOT SPECIFIED

  • Type:

    NOR TYPE

  • Width:

    5.285 mm

  • Write Protection:

    HARDWARE/SOFTWARE

N25Q032A11ESE40F Frequently Asked Questions (FAQs)

  • The N25Q032A11ESE40F supports up to 100,000 erase cycles.
  • The N25Q032A11ESE40F uses a page-based programming and erasure scheme, where each page is 256 bytes. The device can program and erase pages independently.
  • The Write Enable Latch (WEL) signal is used to enable or disable write operations to the device. When WEL is high, the device is in write mode, and when WEL is low, the device is in read mode.
  • The N25Q032A11ESE40F has a built-in power-on reset circuit that initializes the device to a known state after power-up. During power-down, the device enters a low-power standby mode to conserve power.
  • The recommended operating temperature range for the N25Q032A11ESE40F is -40°C to +85°C.
