- Part Number N3428-5203RB
- Manufacturer 3M
- Pin Count 22
- Part Category Connector
- Package Category Other
- Footprint Name Other - N3428-5203RB-3
- Released Date Jan 19, 2022
- Last Modified Date May 18, 2023 10:57 AM UTC
- Pinout / Pin List Click Here (Member Only)
N3428-5203RB Details
-
Manufacturer Part Number:
N3428-5203RB
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Country Of Origin:
Vietnam
-
ECCN Code:
EAR99
-
HTS Code:
8536.69.40.40
-
Manufacturer:
3M Interconnect
-
YTEOL:
9.1
-
Additional Feature:
3M, LATCHED, POLARIZED
-
Connector Type:
BOARD CONNECTOR
N3428-5203RB Frequently Asked Questions (FAQs)
-
The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
-
Yes, the N3428-5203RB is designed to withstand high-vibration environments, but it's recommended to follow the mounting instructions and torque specifications to ensure reliable connections.
-
Yes, the N3428-5203RB is designed for outdoor use and can withstand environmental conditions such as rain, snow, and extreme temperatures. However, it's recommended to follow the recommended installation and sealing procedures to ensure IP67 rating.
-
It's not recommended to use a wire gauge that's not specified in the datasheet. Using a different wire gauge may affect the connector's performance, reliability, and safety.
-
To ensure the connector is properly sealed, follow the recommended installation and sealing procedures, including applying the correct amount of sealant and torqueing the screws to the specified value.
Trust Checks
Expert Contribution
System Verified
Community Approved
N3428-5203RB Overview

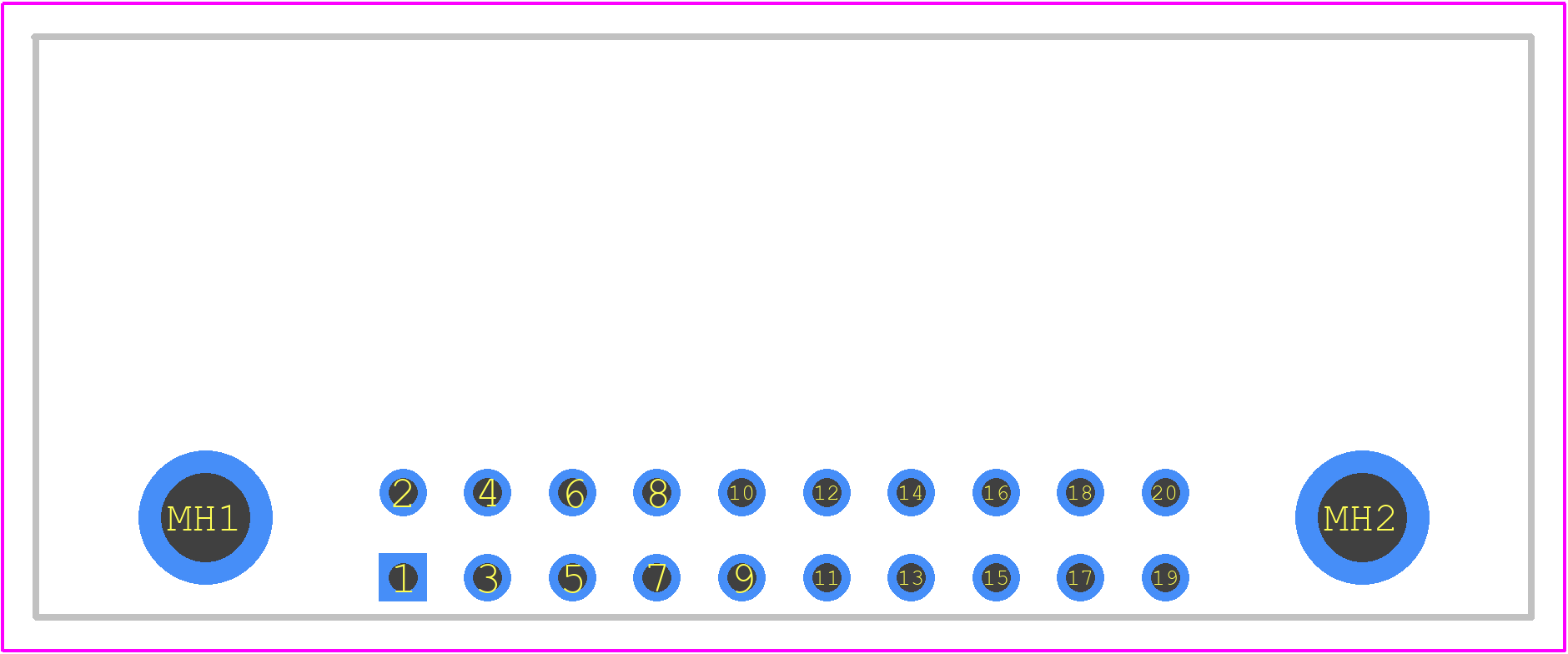

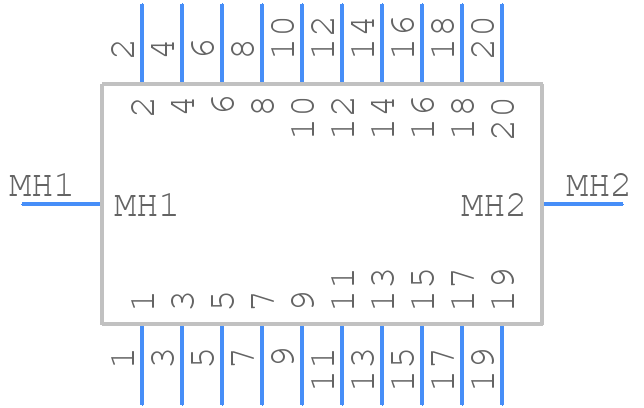

Use the download button to access the N3428-5203RB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like N3428,
or try a keyword search, such as Headers and Edge Type Connectors
