N3428-6202RB - 3M

Description: Header

Download N3428-6202RB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol
N3428-6202RB - 3M - PCB symbol
click to zoom
PCB Footprints

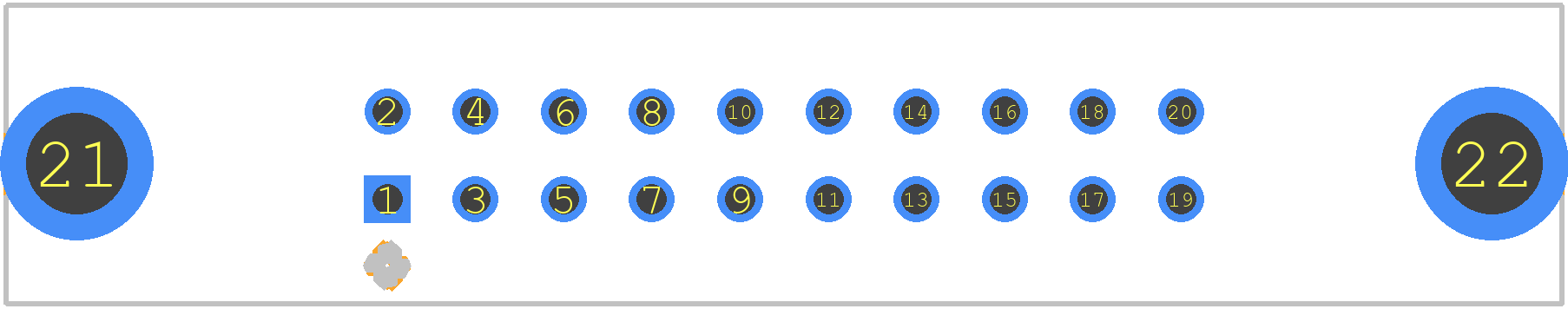

N3428-6202RB - 3M PCB footprint - Other - Other - 3M_N3428-6202RB
click to zoom
3D Models
N3428-6202RB - 3M - 3D model - Other - 3M_N3428-6202RB
click to zoom

N3428-6202RB Details

  • Manufacturer Part Number:

    N3428-6202RB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    9.1

  • Additional Feature:

    3M, LATCHED, POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    STRAIGHT

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    20

  • UL Flammability Code:

    94V-0

N3428-6202RB Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
  • Yes, the N3428-6202RB is designed to withstand vibrations and is suitable for use in applications with moderate to high vibration levels.
  • The N3428-6202RB is designed to operate in temperatures ranging from -40°C to 125°C and can withstand humidity up to 95% RH. However, it's recommended to consult the datasheet and 3M's application notes for specific environmental requirements.
  • The maximum current rating for each contact is 3A. However, it's recommended to derate the current based on the number of contacts and the operating temperature.
  • The N3428-6202RB is designed for signal integrity and can support high-speed data transmission up to 3.2 Gbps. However, it's recommended to consult the datasheet and 3M's application notes for specific signal integrity requirements.

Trust Checks

This model has been verified by system checks.
System Verified
Sponsored

N3428-6202RB Overview

Use the download button to access the N3428-6202RB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like N3428, or try a keyword search, such as Headers and Edge Type Connectors
