N3433-5203RB footprint, schematic symbol and 3D model by 3M

Symbol

click to zoom

PCB Footprints

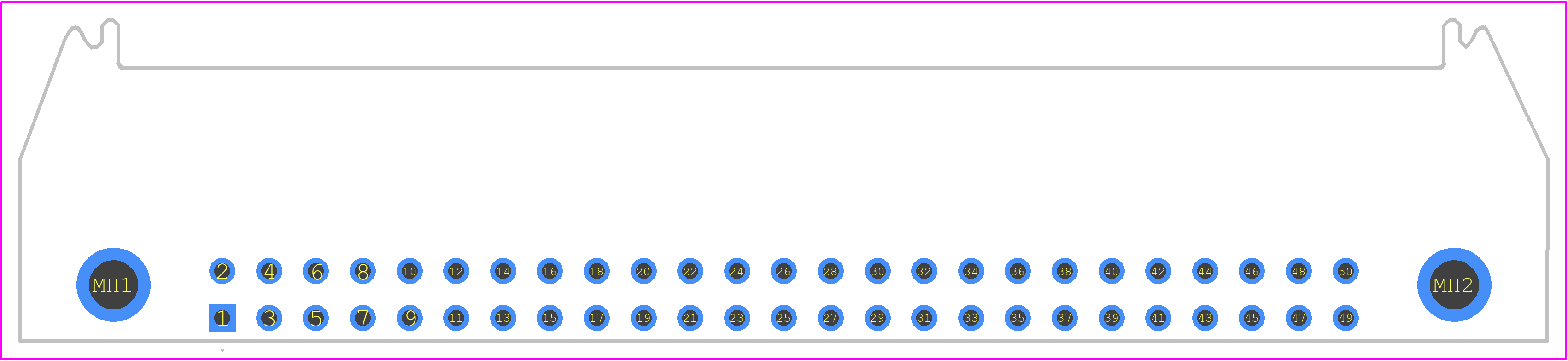

N3433-5203RB - 3M PCB footprint - Other - Other - N3433-5203RB-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for N3433-5203RB
Part Number N3433-5203RB
Manufacturer 3M
Pin Count 52
Part Category Connector
Package Category Other
Footprint Name Other - N3433-5203RB-1
Released Date Jan 4, 2023
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

N3433-5203RB Details

Manufacturer Part Number:
N3433-5203RB
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Active
Country Of Origin:
Vietnam
ECCN Code:
EAR99
HTS Code:
8536.69.40.40
Manufacturer:
3M Interconnect
YTEOL:
9.1
Additional Feature:
3M, LATCHED, POLARIZED
Connector Type:
BOARD CONNECTOR
Contact Finish Mating:
NOT SPECIFIED
Contact Finish Termination:
MATTE TIN OVER NICKEL
Contact Gender:
MALE
Contact Material:
NOT SPECIFIED
DIN Conformance:
NO
Filter Feature:
NO
IEC Conformance:
NO
JESD-609 Code:
e3
MIL Conformance:
NO
Mixed Contacts:
NO
Mounting Style:
RIGHT ANGLE
Mounting Type:
BOARD
Number Of Connectors:
ONE
Number of Rows Loaded:
2
Option:
GENERAL PURPOSE
Terminal Pitch:
2.54 mm
Termination Type:
SOLDER
Total Number of Contacts:
50
UL Flammability Code:
94V-0

N3433-5203RB Frequently Asked Questions (FAQs)

The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs).
Yes, the N3433-5203RB is designed to withstand high-vibration environments, with a vibration rating of 10-2000 Hz, 10 G peak acceleration.
Yes, the N3433-5203RB has a IP67 rating, making it suitable for outdoor use and resistant to dust and water ingress.
The operating temperature range of the N3433-5203RB is -40°C to 125°C (-40°F to 257°F).
No, the N3433-5203RB is designed for use with wire sizes AWG 20-24. Using a larger wire size may compromise the connector's performance and reliability.

Trust Checks

Community Provided

System Verified

Community Approved

N3433-5203RB Overview

Use the download button to access the N3433-5203RB schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like N3433, or try a keyword search, such as Headers and Edge Type Connectors
