N3440-5302RB - 3M

Description: Headers & Wire Housings 30P R/A LONG PIN SOLDER TAIL 30u GOLD

Download N3440-5302RB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

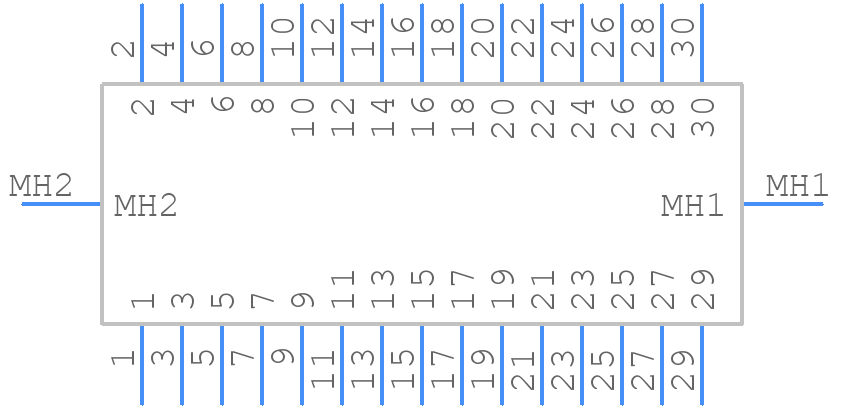

N3440-5302RB - 3M - PCB symbol
click to zoom
PCB Footprints

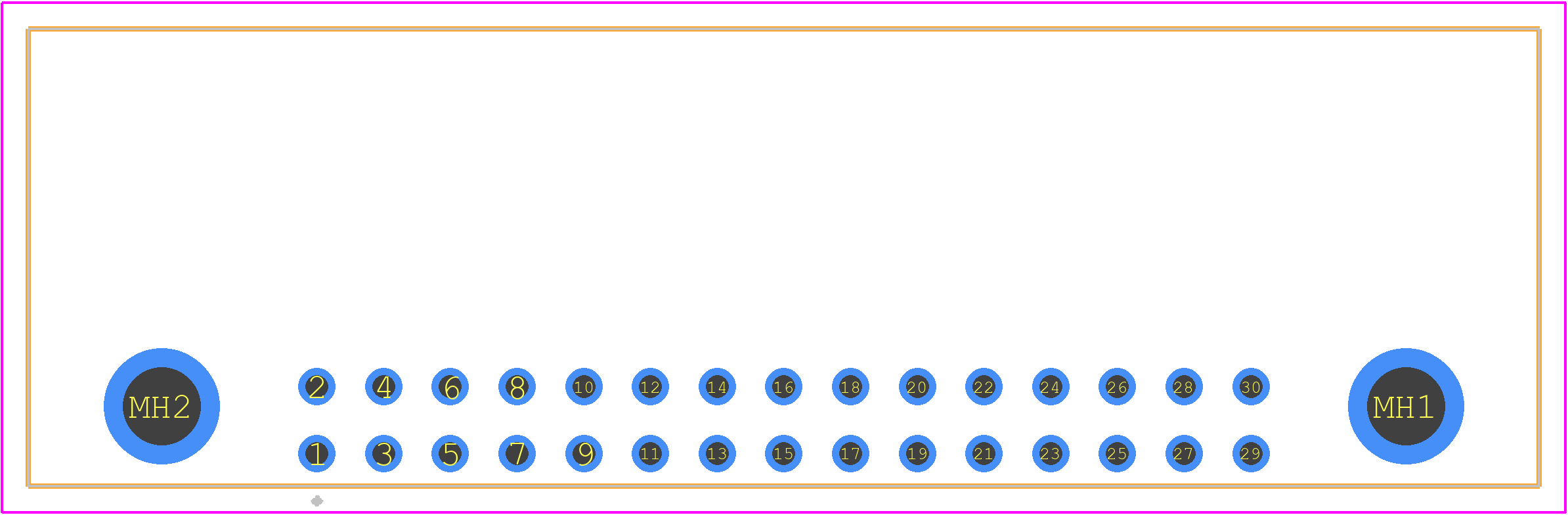

N3440-5302RB - 3M PCB footprint - Other - Other - N3440-5302RB-3
click to zoom
3D Models
N3440-5302RB - 3M - 3D model - Other - N3440-5302RB-3
click to zoom

N3440-5302RB Details

  • Manufacturer Part Number:

    N3440-5302RB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • Reach Compliance Code:

    Compliant

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    9.1

  • Additional Feature:

    3M, LATCHED, POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    30

  • UL Flammability Code:

    94V-0

N3440-5302RB Frequently Asked Questions (FAQs)

  • The recommended torque specification for the screw terminals is 0.5-1.5 Nm (4.4-13.3 in-lbs).
  • Yes, the N3440-5302RB is designed to withstand vibrations and can be used in applications with moderate to high vibration levels.
  • The connector is designed for indoor use, but it can be used outdoors with proper sealing and protection. However, it's essential to ensure the connector is properly sealed and protected from moisture and other environmental factors.
  • The operating temperature range for the N3440-5302RB is -40°C to 105°C (-40°F to 221°F).
  • It's not recommended to use a wire gauge that's significantly different from the recommended gauge, as it may affect the connector's performance and reliability.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

N3440-5302RB Overview

Use the download button to access the N3440-5302RB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like N3440, or try a keyword search, such as Headers and Edge Type Connectors
