N3793-5003RB - 3M

Description: Headers & Wire Housings BOARDMT HDR 10P NO LATCH/EJECTOR

Download N3793-5003RB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

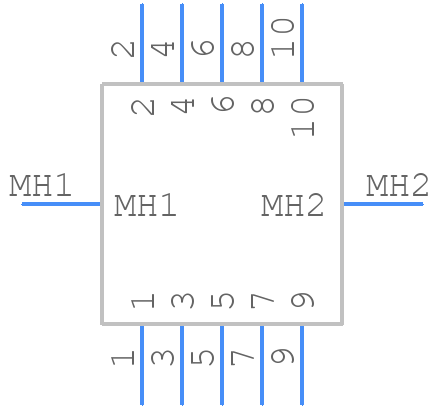

Symbol
N3793-5003RB - 3M - PCB symbol
click to zoom

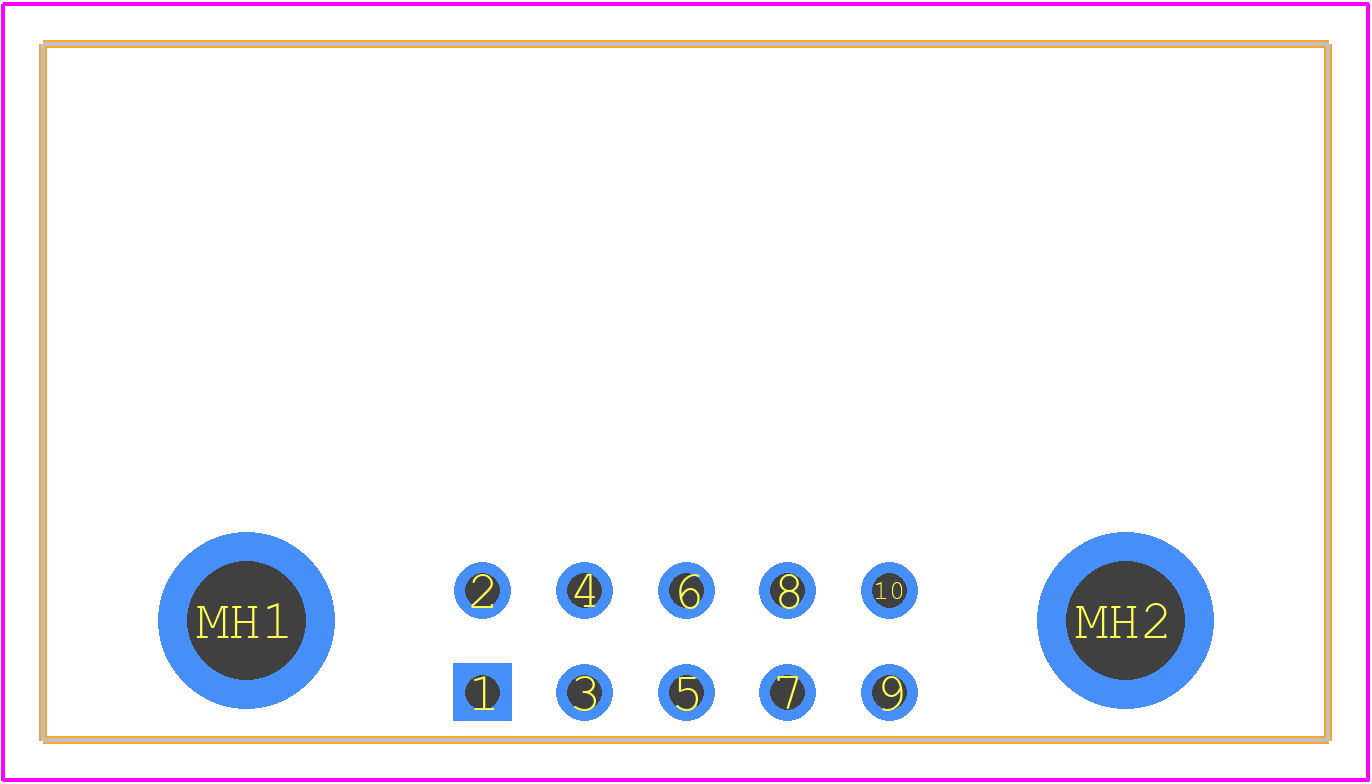

PCB Footprints
N3793-5003RB - 3M PCB footprint - Other - Other - N3793-5003RB-2
click to zoom
3D Models
N3793-5003RB - 3M - 3D model - Other - N3793-5003RB-2
click to zoom

N3793-5003RB Details

  • Manufacturer Part Number:

    N3793-5003RB

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Vietnam

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Manufacturer:

    3M Interconnect

  • YTEOL:

    9.1

  • Additional Feature:

    3M, POLARIZED

  • Connector Type:

    BOARD CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    MATTE TIN OVER NICKEL

  • Contact Gender:

    MALE

  • Contact Material:

    NOT SPECIFIED

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number of Rows Loaded:

    2

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    2.54 mm

  • Termination Type:

    SOLDER

  • Total Number of Contacts:

    10

  • UL Flammability Code:

    94V-0

N3793-5003RB Frequently Asked Questions (FAQs)

  • The recommended torque for the screw terminals is 0.5-1.5 Nm (4-12 in-lbs). It's essential to follow this torque specification to ensure reliable connections and prevent damage to the terminals.
  • Yes, the N3793-5003RB is designed to withstand high-vibration environments. The connector's rugged construction and secure screw terminals ensure reliable connections even in harsh conditions.
  • The N3793-5003RB has a IP67 rating, which means it is protected against dust and water ingress. However, it's essential to ensure proper sealing and protection of the connector and cable assembly to maintain its integrity in outdoor environments.
  • The N3793-5003RB has an operating temperature range of -40°C to 125°C (-40°F to 257°F). It's essential to ensure that the connector is used within this temperature range to maintain its performance and reliability.
  • The N3793-5003RB is designed for use with specific cable types and sizes. It's essential to consult the datasheet and manufacturer's recommendations to ensure compatibility with your chosen cable type.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

N3793-5003RB Overview

Use the download button to access the N3793-5003RB schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like N3793, or try a keyword search, such as Headers and Edge Type Connectors
