- Part Number N76E885AT28
- Manufacturer Nuvoton
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 28-pin TSSOP
- Released Date Jul 5, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
N76E885AT28 Details
-
Manufacturer Part Number:
N76E885AT28
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.15
-
Manufacturer:
Nuvoton Technology Corp
-
Has ADC:
YES
-
Bit Size:
8
-
Clock Frequency-Max:
25 MHz
-
DAC Channels:
YES
-
DMA Channels:
NO
-
Length:
9.7 mm
-
Number of I/O Lines:
26
N76E885AT28 Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for N76E885AT28 is 2.2V to 5.5V.
-
The clock source for N76E885AT28 can be configured using the Clock Control Register (CLKCTL). You can choose between internal RC oscillator, external crystal oscillator, or external clock input.
-
The maximum frequency of the CPU in N76E885AT28 is 20 MHz.
-
The UART interface in N76E885AT28 can be used by configuring the UART Control Register (UARTCTL) and the Baud Rate Generator Register (UARTBRG). You can also use the UART interrupt to handle data transmission and reception.
-
The WDT in N76E885AT28 is used to reset the microcontroller in case of a software fault or a system crash. It can be enabled or disabled using the WDT Control Register (WDTCTL).
Trust Checks
Expert Contribution
System Verified
Community Approved
N76E885AT28 Overview

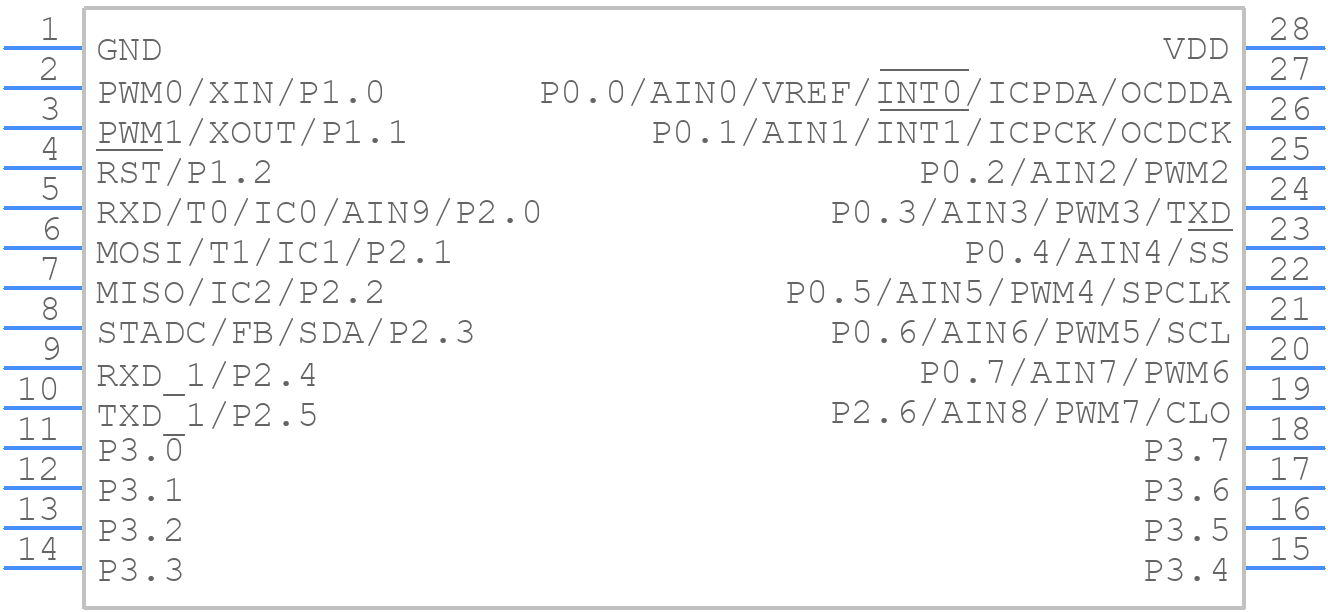

Use the download button to access the N76E885AT28 schematic symbol, PCB footprint, and 3D model.
