- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for N79E855AWG
- Part Number N79E855AWG
- Manufacturer Nuvoton
- Pin Count 28
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - 28-pin TSSOP
- Released Date May 28, 2018
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
N79E855AWG Details
-
Manufacturer Part Number:
N79E855AWG
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Nuvoton Technology Corp
-
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER
N79E855AWG Frequently Asked Questions (FAQs)
-
The N79E855AWG can operate in a temperature range of -40°C to 85°C.
-
The clock source can be configured using the Clock Control Register (CLKCTL). The N79E855AWG can use an external crystal oscillator, internal RC oscillator, or external clock source.
-
The maximum frequency of the N79E855AWG is 24 MHz.
-
The ADC on the N79E855AWG is a 12-bit successive approximation ADC. It can be configured using the ADC Control Register (ADCCON) and the ADC Data Register (ADCADATA).
-
No, the N79E855AWG is a 3.3V device and should not be used with a 5V power supply. Using a 5V power supply may damage the device.
Trust Checks
Expert Contribution
System Verified
Community Approved
N79E855AWG Overview

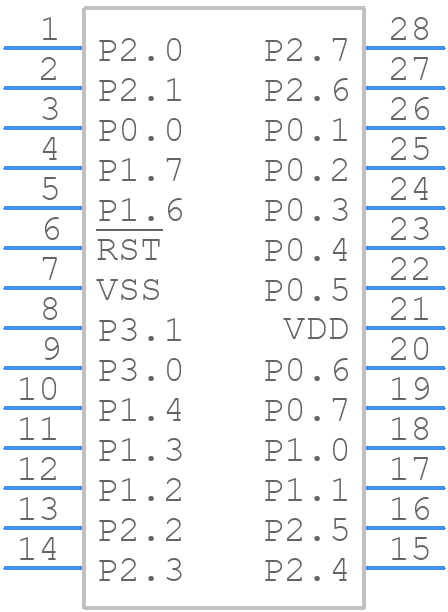

Use the download button to access the N79E855AWG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like N79E8,
or try a keyword search, such as Microcontrollers
