N7G24-A0B2RA-00-0HT - 3M

Description: Memory Card Connectors CardConn CompactFlsh Push Btn Eject 30u"

Download N7G24-A0B2RA-00-0HT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

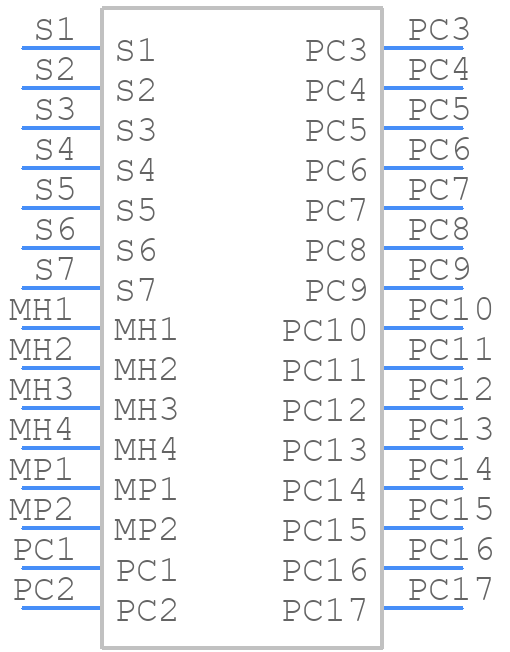

N7G24-A0B2RA-00-0HT - 3M - PCB symbol
click to zoom
PCB Footprints

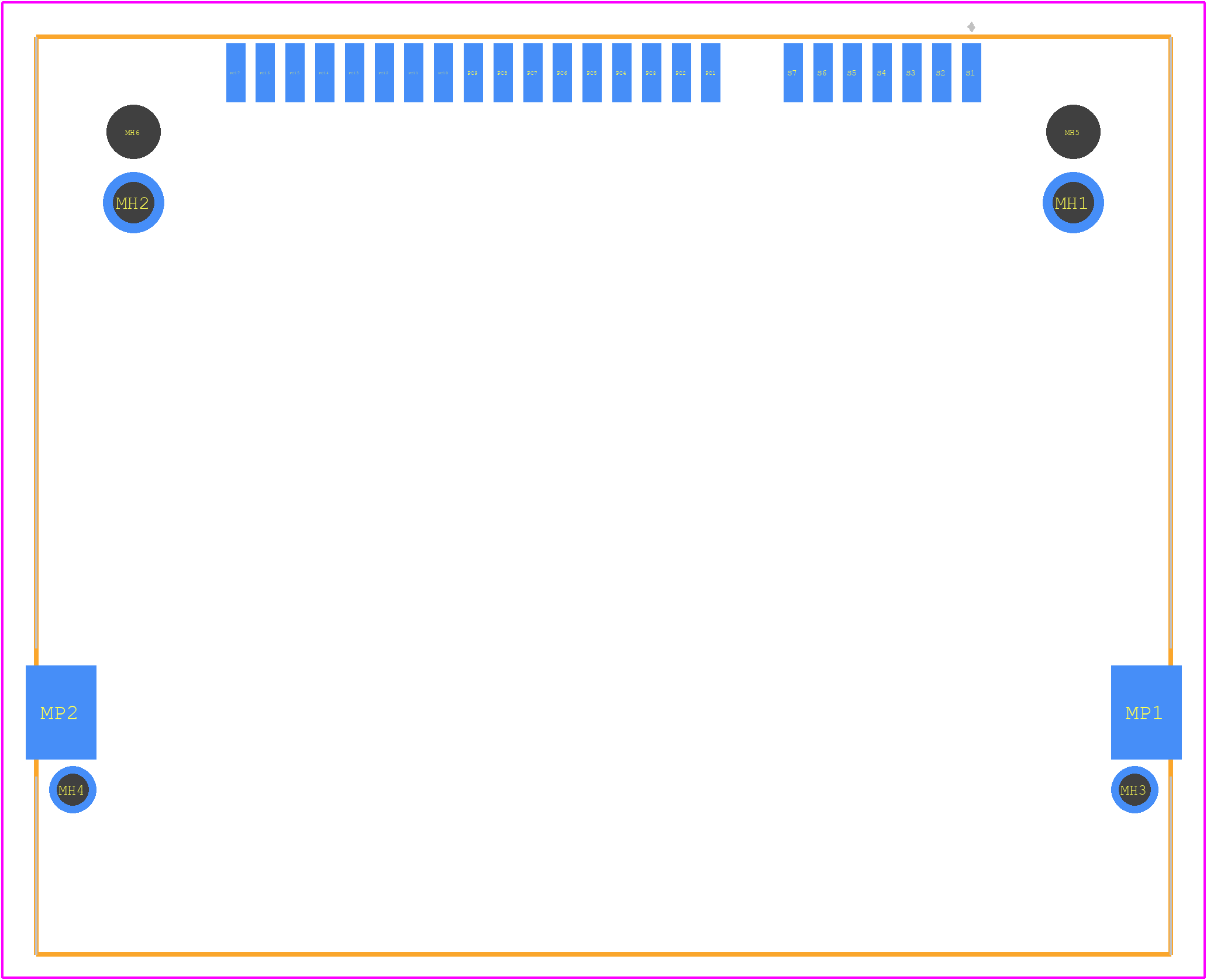

N7G24-A0B2RA-00-0HT - 3M PCB footprint - Other - Other - N7G24-A0B2RA-10-0HT-2
click to zoom
3D Models
N7G24-A0B2RA-00-0HT - 3M - 3D model - Other - N7G24-A0B2RA-10-0HT-2
click to zoom

N7G24-A0B2RA-00-0HT Details

  • Manufacturer Part Number:

    N7G24-A0B2RA-00-0HT

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    ROHS COMPLIANT

  • ECCN Code:

    EAR99

  • HTS Code:

    8536.69.40.40

  • Factory Lead Time:

    12 Weeks, 1 Day

  • Manufacturer:

    3M Interconnect

  • Body Depth:

    0.224 inch

  • Body Length:

    1.91 inch

  • Connector Type:

    PCB CONNECTOR

  • Contact Finish Mating:

    NOT SPECIFIED

  • Contact Finish Termination:

    Matte Tin (Sn) - with Nickel (Ni) barrier

  • Contact Gender:

    FEMALE

  • Contact Material:

    NOT SPECIFIED

  • Contact Pattern:

    RECTANGULAR

  • DIN Conformance:

    NO

  • Filter Feature:

    NO

  • IEC Conformance:

    NO

  • Insulator Material:

    POLYETHYLENE

  • JESD-609 Code:

    e3

  • MIL Conformance:

    NO

  • Mating Contact Pitch:

    0.05 inch

  • Mixed Contacts:

    NO

  • Mounting Style:

    RIGHT ANGLE

  • Mounting Type:

    BOARD

  • Number Of Connectors:

    ONE

  • Number Of PCB Rows:

    1

  • Number of Rows Loaded:

    1

  • Option:

    GENERAL PURPOSE

  • Terminal Pitch:

    1.27 mm

  • Termination Type:

    SURFACE MOUNT

  • Total Number of Contacts:

    24
