The recommended operating voltage range for N9H30F61IEC is 2.7V to 5.5V, with a typical voltage of 3.3V.
The clock source for N9H30F61IEC can be configured using the Clock Control Register (CLKCTL). You can choose between internal RC oscillator, external crystal oscillator, or external clock input.
The maximum frequency of the N9H30F61IEC is 60 MHz, but it can be operated at lower frequencies to reduce power consumption.
The N9H30F61IEC has several low-power modes, including Idle, Sleep, and Power-Down modes. These modes can be entered by setting the corresponding bits in the Power Management Control Register (PMCCTL).
The built-in voltage regulator on the N9H30F61IEC is used to regulate the internal voltage supply to the core and peripherals, allowing the device to operate from a single external power supply voltage.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
N9H30F61IEC Overview

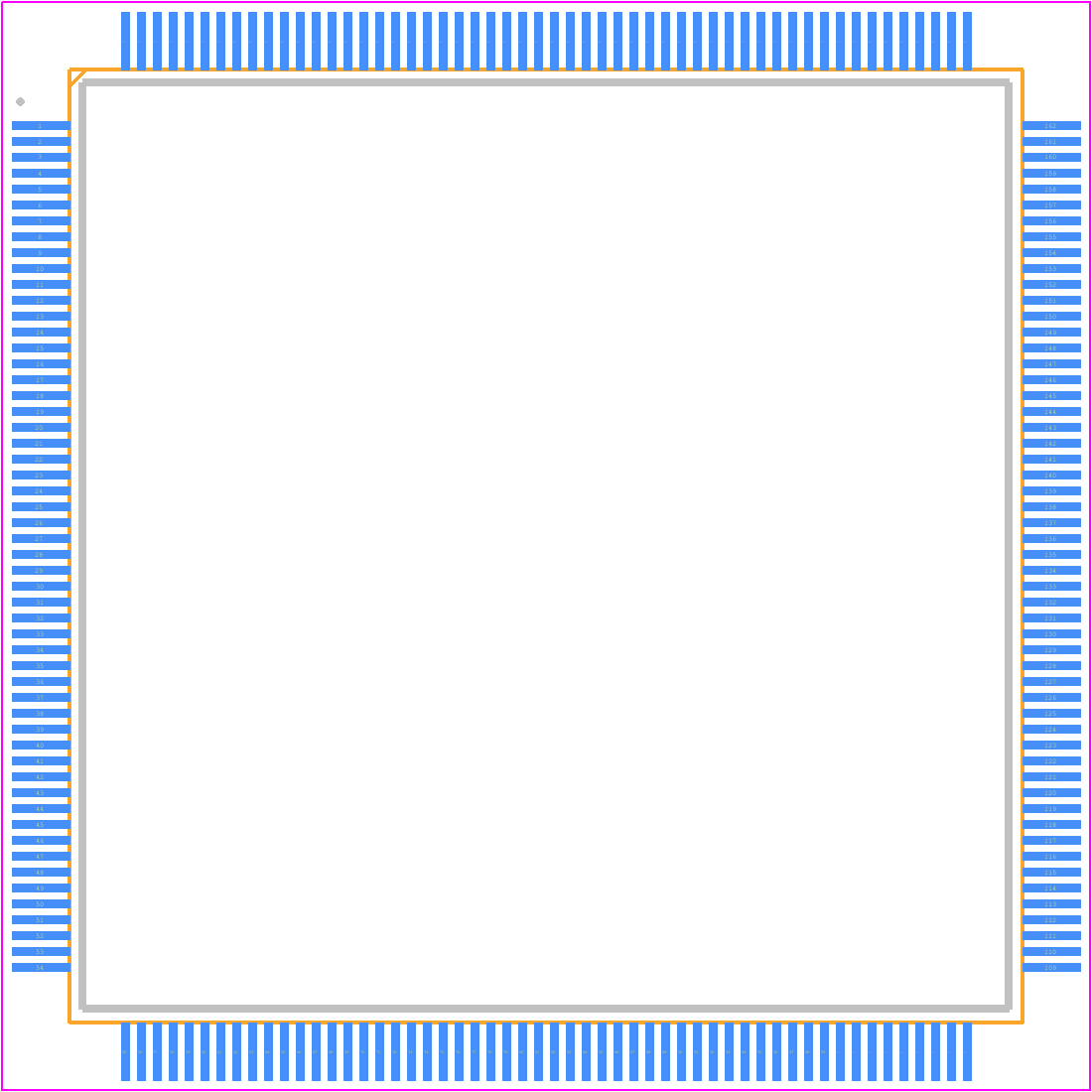

Use the download button to access the N9H30F61IEC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like N9H30,
or try a keyword search, such as Microprocessors
