- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for N9H30F63IEC
- Part Number N9H30F63IEC
- Manufacturer Nuvoton
- Pin Count 216
- Part Category Integrated Circuit
- Package Category Quad Flat Packages

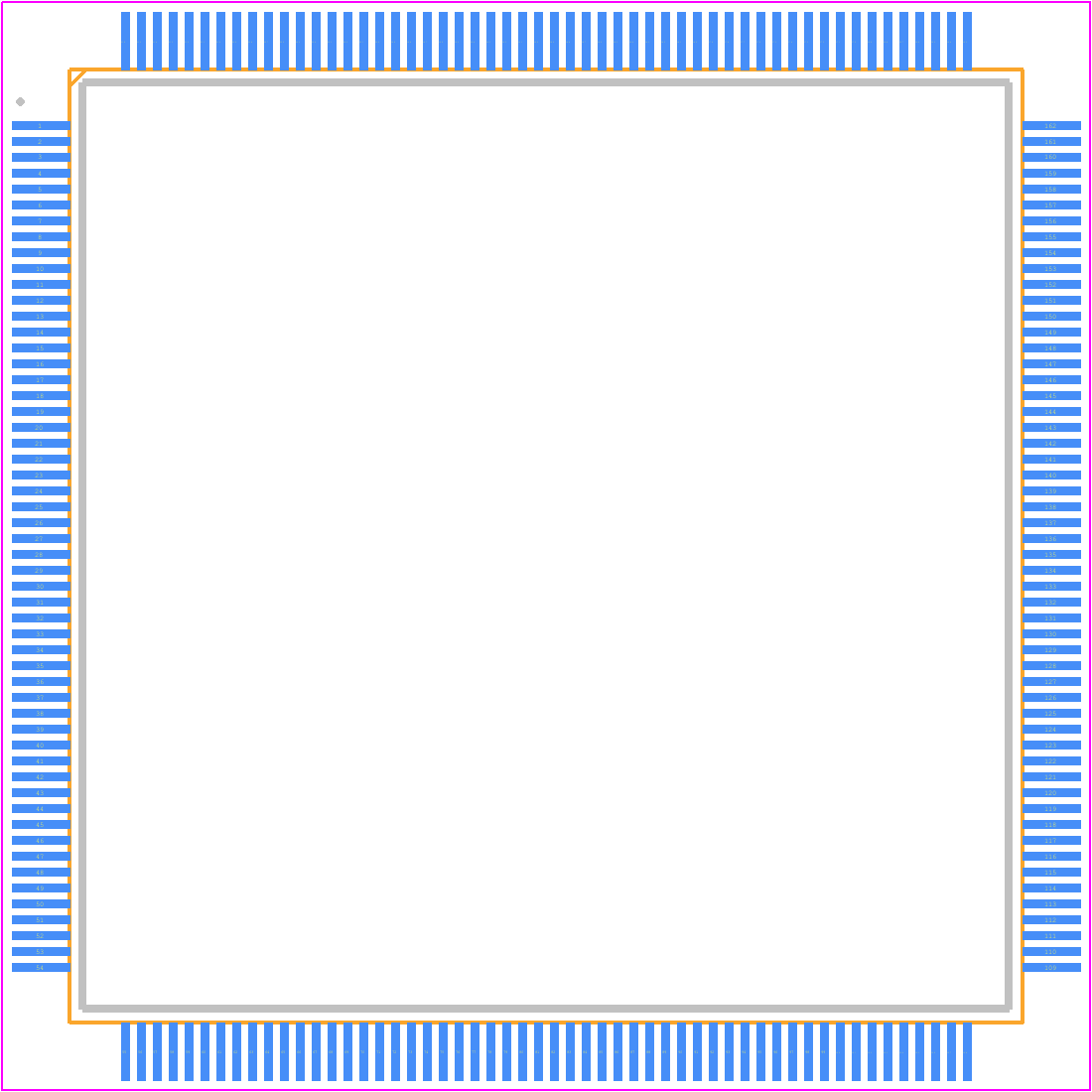

- Footprint Name Quad Flat Packages - 216L LQFP(24*24*1.4MM)
- Released Date Sep 28, 2022
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
N9H30F63IEC Details
-
Manufacturer Part Number:
N9H30F63IEC
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.30
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
9
-
uPs/uCs/Peripheral ICs Type:
MICROCONTROLLER
N9H30F63IEC Frequently Asked Questions (FAQs)
-
The maximum operating temperature range for the N9H30F63IEC is -40°C to 105°C.
-
The clock source for the N9H30F63IEC can be configured using the Clock Control Register (CLKCTL). You can select between the internal RC oscillator, external crystal oscillator, or external clock source.
-
The maximum frequency for the N9H30F63IEC is 60 MHz.
-
The watchdog timer on the N9H30F63IEC can be enabled by setting the WDTEN bit in the Watchdog Timer Control Register (WDTCR). You can also configure the watchdog timer period and reset mode using the WDTCR register.
-
The Brown-out Detector (BOD) on the N9H30F63IEC is used to detect when the voltage supply drops below a certain threshold, and can be configured to reset the microcontroller or generate an interrupt when this occurs.
Trust Checks
Community Provided
System Verified
Community Approved
N9H30F63IEC Overview
Use the download button to access the N9H30F63IEC schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like N9H30,
or try a keyword search, such as Microprocessors
