NA555S-13 - Diodes Incorporated

Description: Timers & Support Products Timers SO-8 T&R 2.5K Timers SO-8 T&R 2.5K

Download NA555S-13 Model

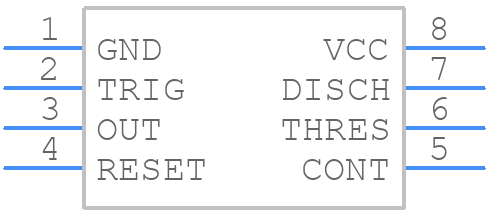

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NA555S-13 - Diodes Incorporated PCB footprint - Small Outline Packages - Small Outline Packages - SO-8(Thickness=1.7mm)
click to zoom
3D Models
NA555S-13 - Diodes Incorporated  - 3D model - Small Outline Packages - SO-8(Thickness=1.7mm)
click to zoom

NA555S-13 Details

  • Manufacturer Part Number:

    NA555S-13

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    12 Weeks

  • Manufacturer:

    Diodes Incorporated

  • YTEOL:

    7

  • Analog IC - Other Type:

    PULSE; RECTANGULAR

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    16 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    MATTE TIN

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NA555S-13 Frequently Asked Questions (FAQs)

  • A simple RC circuit with a 10kΩ resistor and a 10uF capacitor can be used to provide a power-on reset to the NA555S-13. This ensures that the timer starts in a known state after power-up.
  • To ensure reliable operation in high-temperature environments, it is recommended to derate the supply voltage and reduce the operating frequency. Additionally, ensure that the device is properly heat-sinked and that the PCB is designed to minimize thermal resistance.
  • The maximum frequency of operation for the NA555S-13 is approximately 2.5MHz, although this can vary depending on the specific application and operating conditions.
  • Yes, the NA555S-13 can be used as a VCO by applying a control voltage to the threshold pin (pin 6). This allows the frequency of the oscillator to be varied in response to an external voltage.
  • To minimize power consumption, use a low supply voltage (e.g., 3.3V) and reduce the operating frequency to the minimum required for the application. Additionally, consider using a low-power version of the NA555S-13, such as the NA555S-13L.

Trust Checks

This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NA555S-13 Overview

Use the download button to access the NA555S-13 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NA555, or try a keyword search, such as Analog Waveform Generation Functions
