NA5730-ALD - COILCRAFT

Description: Audio Transformers / Signal Transformers NA5730 SMT Flyback For TI TPS23751/2

Download NA5730-ALD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

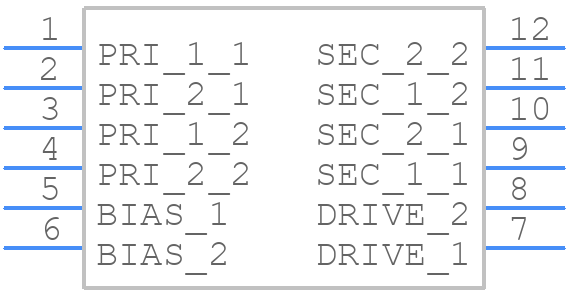

NA5730-ALD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints

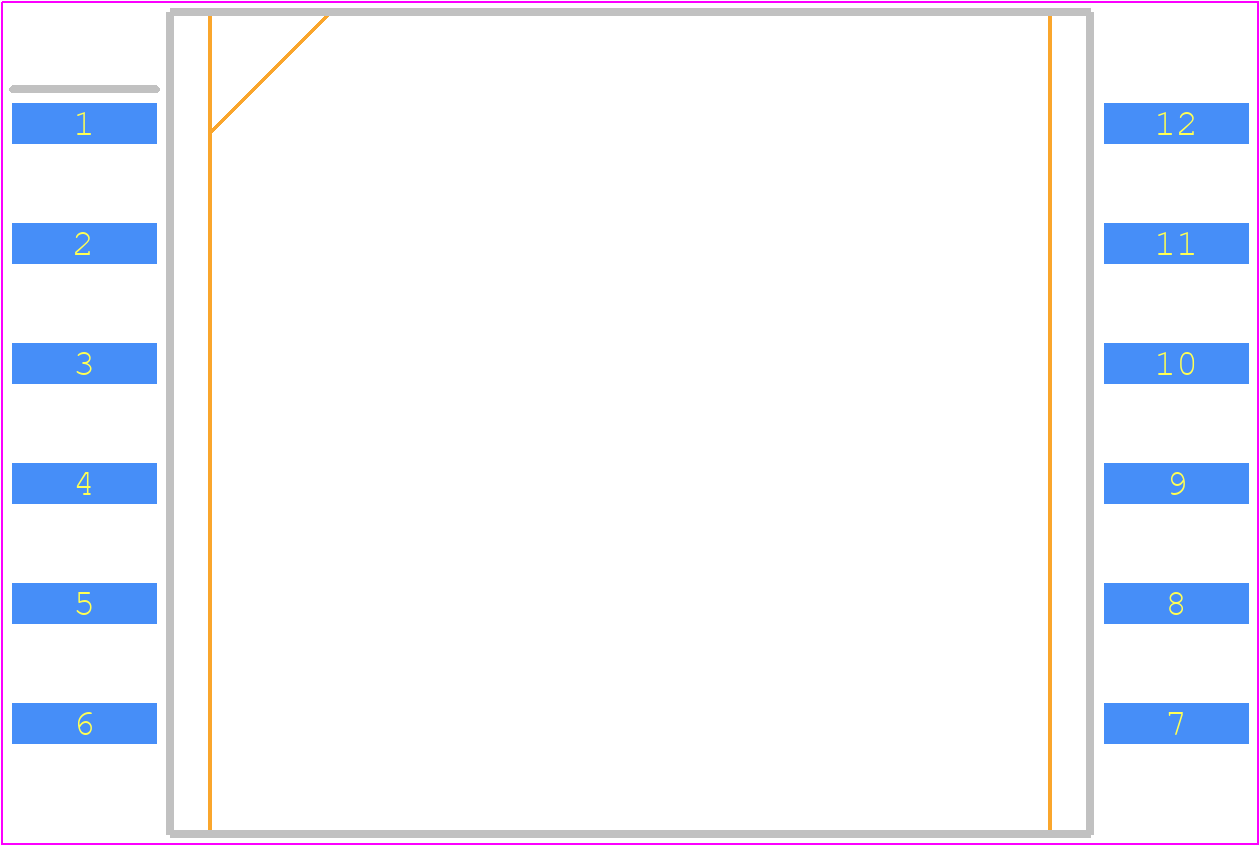

NA5730-ALD - COILCRAFT PCB footprint - Small Outline Packages - Small Outline Packages - NA5730-ALD
click to zoom
3D Models
NA5730-ALD - COILCRAFT - 3D model - Small Outline Packages - NA5730-ALD
click to zoom

NA5730-ALD Details

  • Manufacturer Part Number:

    NA5730-ALD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • Height:

    11.43 mm

  • Input Voltage-Max:

    57 V

  • Input Voltage-Min:

    33 V

  • Length:

    21 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    2

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    5 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Primary Inductance:

    55.8 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    20.57 mm

NA5730-ALD Frequently Asked Questions (FAQs)

  • Coilcraft recommends a land pattern with a minimum pad size of 2.5 mm x 1.5 mm and a non-solder mask defined (NSMD) pad to ensure reliable soldering and to prevent solder bridging.
  • While NA5730-ALD is rated for operation up to 125°C, it's essential to consider the derating of inductance and resistance at high temperatures. Consult Coilcraft's application notes for guidance on high-temperature operation.
  • To prevent moisture-related issues, store NA5730-ALD in a dry environment (less than 30% RH) and follow proper handling and soldering procedures. Baking the components before reflow soldering can also help remove excess moisture.
  • The maximum current rating for NA5730-ALD is 3.3 A, but this value can be affected by the operating frequency, temperature, and other factors. Consult Coilcraft's application notes for guidance on current rating and derating.
  • Yes, NA5730-ALD is suitable for high-frequency applications up to 1 GHz. However, it's essential to consider the inductor's self-resonant frequency, Q factor, and impedance characteristics at the operating frequency.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NA5730-ALD Overview

Use the download button to access the NA5730-ALD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NA573, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
