NA5889-ALD footprint, schematic symbol and 3D model by COILCRAFT

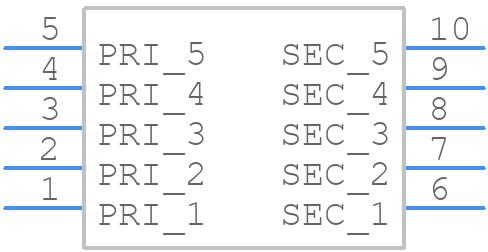

Symbol

click to zoom

PCB Footprints

NA5889-ALD - COILCRAFT PCB footprint - Other - Other - NA5889-ALD-1

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NA5889-ALD
Part Number NA5889-ALD
Manufacturer COILCRAFT
Pin Count 10
Part Category Transformer
Package Category Other
Footprint Name Other - NA5889-ALD-1
Released Date Jan 3, 2022
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

NA5889-ALD Details

Manufacturer Part Number:
NA5889-ALD
Rohs Code:
Yes
Part Life Cycle Code:
Active
Package Description:
CHIP
ECCN Code:
EAR99
Manufacturer:
Coilcraft Inc
YTEOL:
6.18
Additional Feature:
HEIGHT DIMENSION INCLUDES TERMINAL ALSO
Height:
12.7 mm
Input Voltage-Max:
32 V
Input Voltage-Min:
2.9 V
Length:
13.46 mm
Mounting Feature:
SURFACE MOUNT
Number of Primary Winding:
2
Number of Secondary Winding:
2
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Voltage 1:
12 V
Packing Method:
TR, EMBOSSED PLASTIC, 13 INCH
Power Rating:
12 W
Primary Inductance:
12 µH
Surface Mount:
YES
Transformer Type:
SMPS TRANSFORMER
Width:
13 mm

NA5889-ALD Frequently Asked Questions (FAQs)

The recommended land pattern for the NA5889-ALD is a rectangular pad with a size of 2.5 mm x 1.5 mm, with a non-solder mask defined (NSMD) pad shape.
To ensure reliable soldering, use a soldering iron with a temperature of 250°C to 270°C, and apply a small amount of solder paste to the pads. Avoid applying excessive heat or pressure, which can damage the component.
The NA5889-ALD is rated for operation from -40°C to +125°C, but derating may be necessary for high-frequency applications or high-temperature environments.
Yes, the NA5889-ALD is designed to withstand vibrations up to 10 G, but it's recommended to secure the component with a suitable adhesive or mechanical fastening to prevent movement during operation.
Store the NA5889-ALD in a dry, cool place, away from direct sunlight and moisture. Avoid bending or flexing the component, and use anti-static packaging to prevent electrostatic discharge (ESD) damage.

Trust Checks

Expert Contribution

System Verified

Community Approved

NA5889-ALD Overview

Use the download button to access the NA5889-ALD schematic symbol and PCB footprint.

To find more CAD model downloads similar to this part, try a partial part number search, like NA588, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
