NA5920-ALB - COILCRAFT

Description: Audio Transformers / Signal Transformers NA5920 12W 0.013Ohms For LT8586

Download NA5920-ALB Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

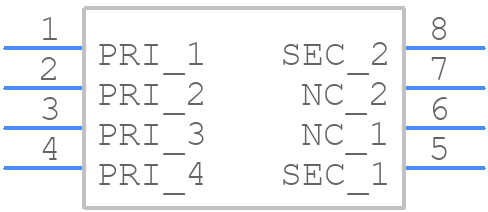

NA5920-ALB - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
NA5920-ALB - COILCRAFT PCB footprint - Small Outline Packages - Small Outline Packages - NA5743-ALB
click to zoom
3D Models
NA5920-ALB - COILCRAFT - 3D model - Small Outline Packages - NA5743-ALB
click to zoom

NA5920-ALB Details

  • Manufacturer Part Number:

    NA5920-ALB

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    0

  • Additional Feature:

    TURNS RATIO: 1:24

  • Height:

    11.43 mm

  • Input Voltage-Max:

    8 V

  • Input Voltage-Min:

    2 V

  • Length:

    12.7 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    2

  • Number of Secondary Winding:

    1

  • Operating Frequency-Max:

    140 kHz

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    400 V

  • Output Voltage 2:

    100 V

  • Packing Method:

    TR

  • Power Rating:

    12 W

  • Primary Inductance:

    4 µH

  • Surface Mount:

    YES

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    10.5 mm

NA5920-ALB Frequently Asked Questions (FAQs)

  • Coilcraft provides a recommended PCB land pattern in their application note AN-40, which can be found on their website. The land pattern is also available in various CAD formats for easy integration into your design.
  • To minimize magnetic field interference, keep the inductor at least 5 mm away from sensitive components such as oscillators, antennas, and magnetometers. You can also use shielding materials or orient the inductor to reduce the magnetic field's impact.
  • While the datasheet specifies a temperature range of -40°C to +125°C, it's essential to note that the inductor's performance may degrade at extreme temperatures. For optimal performance, operate the inductor within the recommended temperature range of -20°C to +100°C.
  • Yes, NA5920-ALB is designed to withstand vibrations up to 10 G. However, it's crucial to ensure the inductor is properly mounted and secured to the PCB to prevent mechanical stress and damage.
  • To minimize EMI and radiation, use a shielded enclosure, and ensure the inductor is placed away from the enclosure's edges. You can also use EMI-absorbing materials or add a mu-metal shield around the inductor.
