NA6223-ALD - COILCRAFT

Description: Audio Transformers / Signal Transformers NA6223 10W 0.33Ohms For TPS23753A

Download NA6223-ALD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

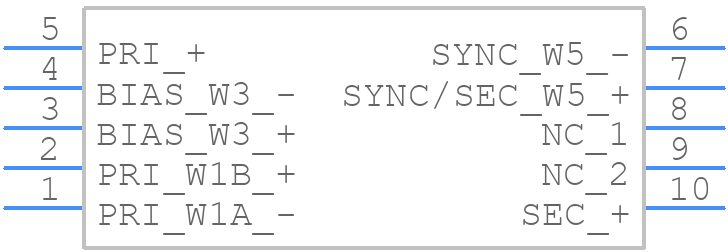

Symbol
NA6223-ALD - COILCRAFT - PCB symbol
click to zoom
PCB Footprints
NA6223-ALD - COILCRAFT PCB footprint - Other - Other - NA6223-ALD-1
click to zoom
3D Models
NA6223-ALD - COILCRAFT - 3D model - Other - NA6223-ALD-1
click to zoom

NA6223-ALD Details

  • Manufacturer Part Number:

    NA6223-ALD

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    CHIP

  • Country Of Origin:

    Mainland China

  • ECCN Code:

    EAR99

  • Manufacturer:

    Coilcraft Inc

  • YTEOL:

    6.21

  • Additional Feature:

    HEIGHT DIMENSION INCLUDES TERMINAL ALSO

  • Height:

    12.7 mm

  • JESD-609 Code:

    e2

  • Length:

    13.46 mm

  • Mounting Feature:

    SURFACE MOUNT

  • Number of Primary Winding:

    1

  • Number of Secondary Winding:

    1

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Voltage 1:

    5 V

  • Packing Method:

    TR, EMBOSSED PLASTIC, 13 INCH

  • Power Rating:

    10 W

  • Primary Inductance:

    162 µH

  • Surface Mount:

    YES

  • Terminal Finish:

    Tin/Silver (Sn/Ag) - with Nickel (Ni) barrier

  • Transformer Type:

    SMPS TRANSFORMER

  • Width:

    13 mm

NA6223-ALD Frequently Asked Questions (FAQs)

  • Coilcraft recommends a land pattern with a minimum pad size of 50 mils x 50 mils (1.27 mm x 1.27 mm) and a non-solder-mask-defined (NSMD) pad shape to ensure reliable soldering and minimize thermal resistance.
  • To minimize electromagnetic interference (EMI), keep the NA6223-ALD at least 5 mm away from sensitive components, and orient the inductor to minimize the magnetic field's impact on nearby components. You can also use shielding or mu-metal to contain the magnetic field.
  • The NA6223-ALD is rated for operation from -40°C to +125°C, but derating may be necessary for high-temperature applications. Consult Coilcraft's application notes for guidance on temperature derating.
  • Yes, the NA6223-ALD is designed to withstand vibrations up to 10 G's, but it's essential to ensure the inductor is properly secured to the PCB using a suitable adhesive or mechanical fastening to prevent movement and damage.
  • To prevent moisture-related failures, store the NA6223-ALD in a dry environment (RH < 60%) and avoid exposing it to moisture during handling and assembly. Follow IPC-J-STD-020 guidelines for moisture-sensitive devices.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NA6223-ALD Overview

Use the download button to access the NA6223-ALD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NA622, or try a keyword search, such as SMPS Transformers

About COILCRAFT

Colicraft designs and manufactures high performing magnectic components, RF chip inductors, power magnectics, and filters. Coilcraft has engineering, manufacturing, and distribution facilities in North America, Asia, and Europe.
