- Part Number NANO103LD3AE
- Manufacturer Nuvoton
- Pin Count 48
- Part Category Integrated Circuit
- Package Category Quad Flat Packages
- Footprint Name Quad Flat Packages - NANO103LD3AE
- Released Date Jun 17, 2019
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
NANO103LD3AE Details
-
Manufacturer Part Number:
NANO103LD3AE
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
HTS Code:
8542.31.00.25
-
Manufacturer:
Nuvoton Technology Corp
-
YTEOL:
7
-
Has ADC:
YES
-
Bit Size:
32
-
CPU Family:
CORTEX-M0
-
Clock Frequency-Max:
24 MHz
-
DAC Channels:
NO
NANO103LD3AE Frequently Asked Questions (FAQs)
-
The recommended operating voltage range for NANO103LD3AE is 2.4V to 5.5V, with a typical voltage of 3.3V.
-
The clock source for NANO103LD3AE can be configured using the Clock Control Register (CLKCTL). You can choose between internal RC oscillator, external crystal oscillator, or external clock source.
-
The maximum frequency of the NANO103LD3AE microcontroller is 24 MHz, which can be achieved using the internal RC oscillator or an external crystal oscillator.
-
The ADC on NANO103LD3AE is a 12-bit successive approximation ADC. You need to configure the ADC clock, select the ADC channel, and set the ADC mode (single-shot or continuous) using the ADC control registers.
-
Yes, the NANO103LD3AE can be used with an external crystal oscillator. You need to connect the crystal oscillator to the XT1 and XT2 pins, and configure the clock source to use the external crystal oscillator.
Trust Checks
Community Provided
System Verified
Community Approved
NANO103LD3AE Overview

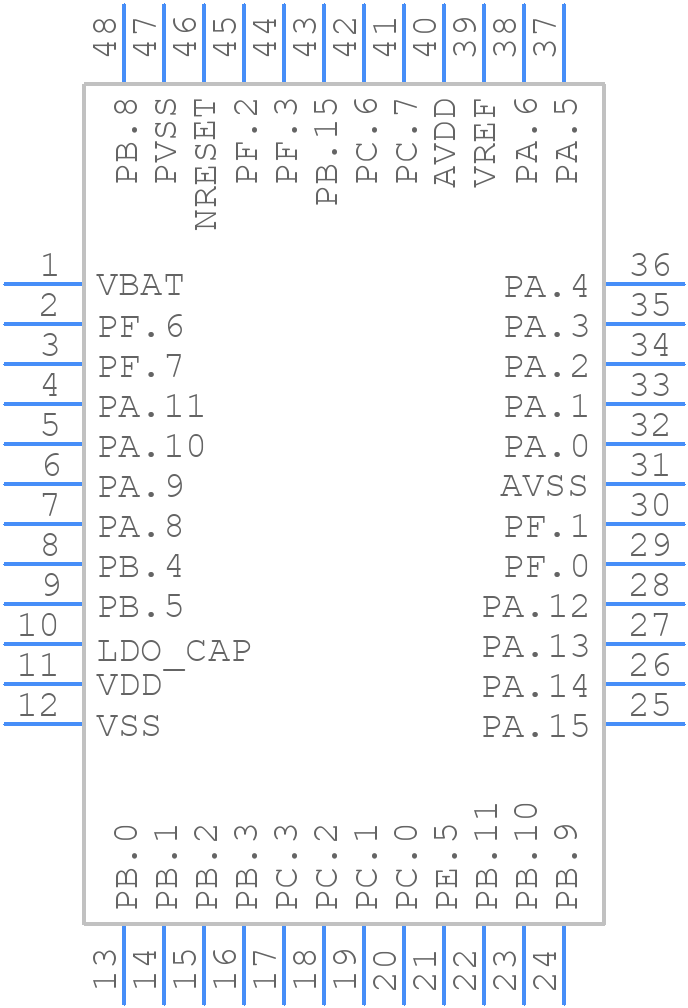

Use the download button to access the NANO103LD3AE schematic symbol, PCB footprint, and 3D model.
