NAU8810YG - Nuvoton

Description: PCM Audio Codec 1ADC / 1DAC Ch 20-Pin QFN EP Differential/Mono Audio Codec with 2-wire Interface Control Interface

Download NAU8810YG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

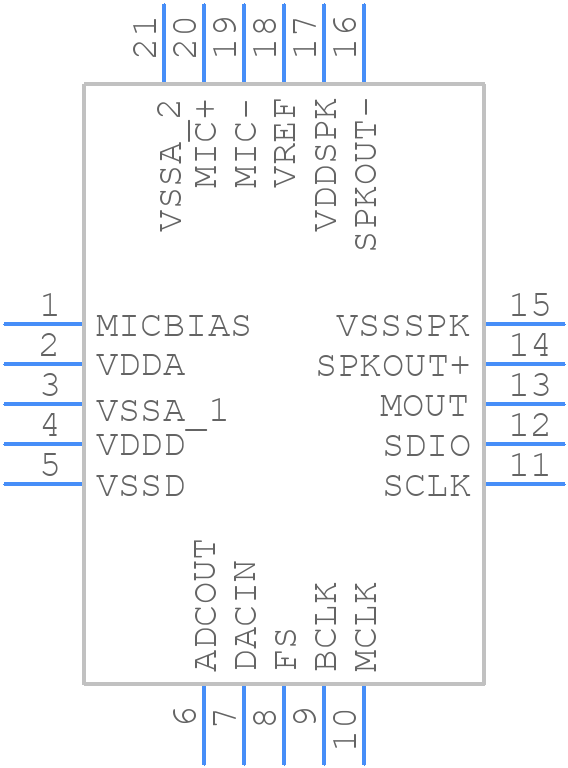

NAU8810YG - Nuvoton - PCB symbol
click to zoom
PCB Footprints
NAU8810YG - Nuvoton PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - NAU88C10
click to zoom
3D Models
NAU8810YG - Nuvoton - 3D model - Quad Flat No-Lead - NAU88C10
click to zoom

NAU8810YG Details

  • Manufacturer Part Number:

    NAU8810YG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    6.65

  • Companding Law:

    A/MU-LAW

  • Filter:

    YES

  • Input Code:

    BINARY

  • Input Type:

    SINGLE-ENDED/DIFF

  • JESD-30 Code:

    S-XQCC-N20

  • Length:

    4 mm

  • Linear Coding:

    24-BIT

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    VOLTAGE

  • Output Code:

    TWOS COMPLEMENT

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Screening Level:

    AEC-Q100; TS 16949

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    PCM CODEC

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    4 mm

NAU8810YG Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the NAU8810YG involves keeping the analog and digital grounds separate, using a star-grounding configuration, and placing the device close to the analog signal sources to minimize noise.
  • To optimize the NAU8810YG's PSRR, use a low-ESR capacitor (e.g., ceramic or film capacitor) for power supply decoupling, and ensure that the power supply lines are well-filtered and regulated.
  • The recommended input impedance for the NAU8810YG is in the range of 1 kΩ to 10 kΩ to ensure optimal performance and minimize distortion.
  • To handle ESD protection for the NAU8810YG, use ESD protection devices (e.g., TVS diodes or ESD arrays) on the input lines, and ensure that the PCB layout and handling procedures minimize the risk of ESD damage.
  • The maximum operating temperature range for the NAU8810YG is -40°C to 85°C, but it's recommended to operate within a narrower range (e.g., 0°C to 70°C) for optimal performance and reliability.
