NAU8822AYG - Nuvoton

Description: 24-bit Stereo Audio Codec with Speaker Driver

Download NAU8822AYG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

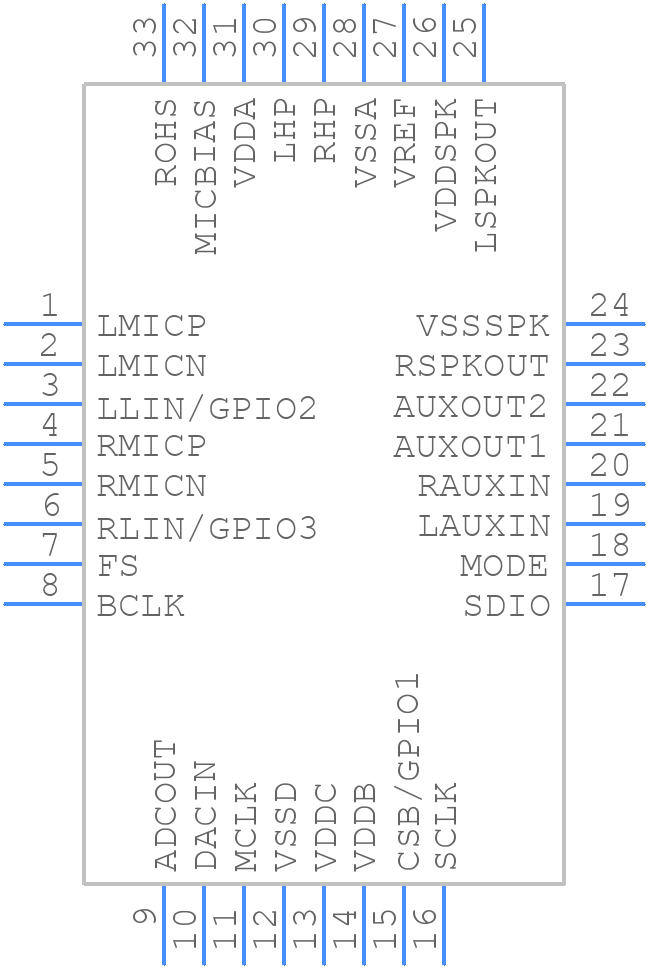

NAU8822AYG - Nuvoton - PCB symbol
click to zoom
PCB Footprints
NAU8822AYG - Nuvoton PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - 32-lead plastic QFN 32L
click to zoom
3D Models
NAU8822AYG - Nuvoton - 3D model - Quad Flat No-Lead - 32-lead plastic QFN 32L
click to zoom

NAU8822AYG Details

  • Manufacturer Part Number:

    NAU8822AYG

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • HTS Code:

    8542.39.00.01

  • Manufacturer:

    Nuvoton Technology Corp

  • YTEOL:

    6.65

  • Additional Feature:

    ANALOG SUPPLY VOLTAGE IS 3.3 V

  • Companding Law:

    A/MU-LAW

  • Filter:

    YES

  • Input Code:

    TWOS COMPLEMENT

  • Input Type:

    DIFFERENTIAL

  • JESD-30 Code:

    S-PQCC-N32

  • Length:

    5 mm

  • Linear Coding:

    8-BIT

  • Number of Channels:

    4

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Mode:

    SYNCHRONOUS

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output:

    VOLTAGE

  • Output Code:

    TWOS COMPLEMENT

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC32,.2SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Seated Height-Max:

    0.8 mm

  • Supply Voltage-Nom:

    1.8 V

  • Surface Mount:

    YES

  • Telecom IC Type:

    PCM CODEC

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Width:

    5 mm

NAU8822AYG Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the NAU8822AYG can be found in the Nuvoton application note AN0333, which provides guidelines for PCB layout, component placement, and thermal management.
  • To optimize the NAU8822AYG for low noise and high PSRR, ensure proper power supply decoupling, use a low-ESR capacitor for the output filter, and minimize the distance between the input and output capacitors. Additionally, use a quiet power supply and ensure good PCB layout practices.
  • The NAU8822AYG can handle a maximum input voltage of 18V, but it is recommended to operate within the specified input voltage range of 4.5V to 15V for optimal performance and reliability.
  • The NAU8822AYG output voltage can be configured by adjusting the resistive divider network connected to the FB pin. The output voltage can be calculated using the formula: Vout = 0.8V x (R1 + R2) / R2, where R1 and R2 are the resistors in the divider network.
  • The thermal shutdown temperature of the NAU8822AYG is typically around 150°C, but this can vary depending on the specific application and operating conditions. It is recommended to implement thermal monitoring and shutdown mechanisms to prevent overheating.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

NAU8822AYG Overview

Use the download button to access the NAU8822AYG schematic symbol, PCB footprint, and 3D model.
