NAU8822LYG footprint, schematic symbol and 3D model by Nuvoton

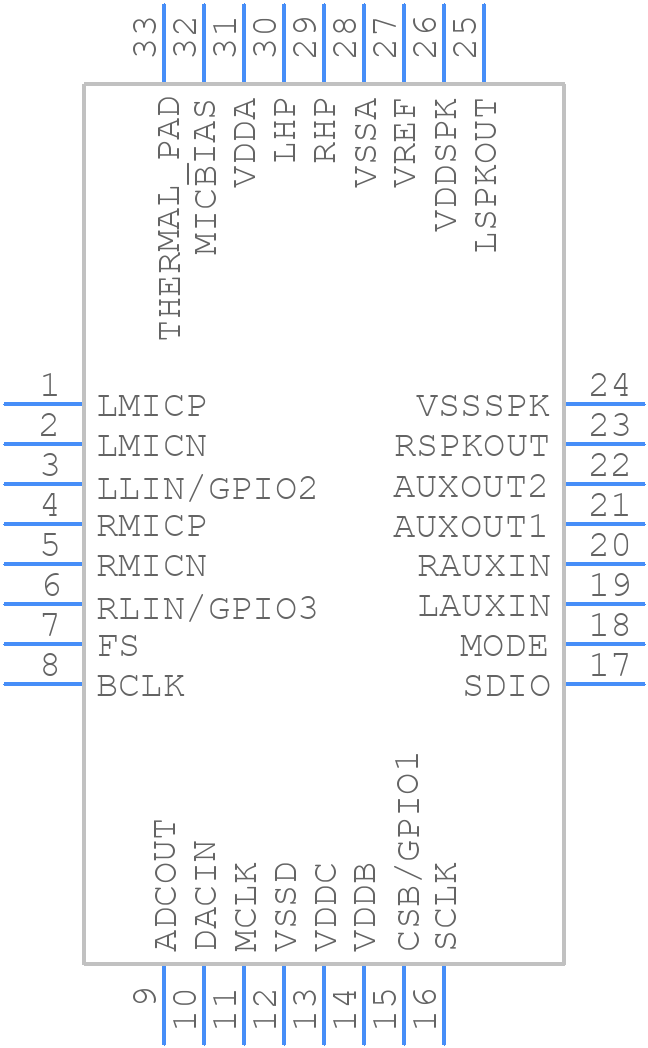

Symbol

PCB Footprints

3D Models

NAU8822LYG Details

The recommended layout and placement for the NAU8822LYG can be found in the Nuvoton application note AN0333, which provides guidelines for PCB layout, component placement, and thermal management.
To optimize the NAU8822LYG for low noise and low distortion, ensure that the power supply is well-regulated and decoupled, use a low-noise voltage regulator, and minimize the length of the input and output traces. Additionally, use a high-quality audio capacitor and ensure that the PCB layout is optimized for minimal electromagnetic interference (EMI).
The maximum power dissipation of the NAU8822LYG is dependent on the operating conditions and the thermal management of the system. According to the datasheet, the maximum power dissipation is 1.2W, but this can be increased with proper thermal management and heat sinking.
The NAU8822LYG has a built-in mute function that can be controlled through the MUTE pin. To implement a mute function, simply toggle the MUTE pin high or low to mute or unmute the audio signal, respectively.
The recommended clock frequency for the NAU8822LYG is 12.288MHz, which is the standard clock frequency for audio applications. However, the device can operate with clock frequencies ranging from 10MHz to 20MHz.

Expert Contribution

System Verified

Community Approved

Use the download button to access the NAU8822LYG schematic symbol, PCB footprint, and 3D model.

To find more CAD model downloads similar to this part, try a partial part number search, like NAU88, or try a keyword search, such as Codecs
