NB100LVEP91DWG - onsemi

Description: Typical Maximum Frequency >2 GHz; 430 ps Typical Propagation Delay; Operating Range: VCC = 2.375 V to 3.8 V; VEE = -2.375 V to -3.8 V; GNDI = 0 V; Q Output will default LOW with Inputs Open or at GND; Pb-Free Packages are Available

Download NB100LVEP91DWG Model

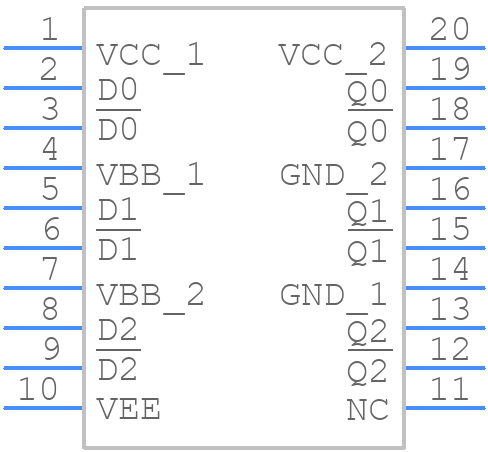

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB100LVEP91DWG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC 20 WB CASE 751D-05
click to zoom
3D Models
NB100LVEP91DWG - onsemi  - 3D model - Small Outline Packages - SOIC 20 WB CASE 751D-05
click to zoom

NB100LVEP91DWG Details

  • Manufacturer Part Number:

    NB100LVEP91DWG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-20 WB

  • Package Description:

    SOP-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    751D-05

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    14 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    4.87

  • Additional Feature:

    LVTTL, LVCMOS, HSTL, CML OR LVDS TO LVNECL TRANSLATION ALSO POSSIBLE

  • Delay-Max:

    0.65 ns

  • Input Characteristics:

    DIFFERENTIAL

  • Interface IC Type:

    PECL TO ECL TRANSLATOR

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e3

  • Length:

    12.8 mm

  • Moisture Sensitivity Level:

    3

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    2.65 mm

  • Supply Current-Max:

    24 mA

  • Supply Voltage-Max:

    3.8 V

  • Supply Voltage-Min:

    2.375 V

  • Supply Voltage-Nom:

    2.5 V

  • Supply Voltage1-Max:

    -3.8 V

  • Supply Voltage1-Min:

    -2.375 V

  • Supply Voltage1-Nom:

    -3 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    7.5 mm
