Description:Flexible Input Reference − 25 MHz Crystal, Oscillator, Single−Ended or Differential; Four Independent User−Programmable Clock Frequencies from 25 MHz to 250 MHz; Up to Eight LVCMOS Single Ended outputs or up to Four Differential LVPECL Outputs or any combination of LVCMOS and LVPECL; Independently Configurable Outputs; Flexible Input/Core and Output Power Supply Combinations:; VDD (Core) = 3.3 V ±5% or 2.5 V ±5%; VDDOn (Outputs) = 3.3 V ±5% or 2.5 V ±5% or 1.8 V ±5% (LVCMOS Only); Independent Power Supply p
A good PCB layout for optimal thermal performance involves placing thermal vias under the package, using a solid ground plane, and keeping the thermal path as short as possible. It's also recommended to use a thermal pad on the bottom of the package.
To ensure reliable operation in high-temperature environments, it's essential to follow the recommended operating conditions, use a suitable thermal management system, and consider derating the device's performance. Additionally, ensure that the PCB is designed to withstand high temperatures and that the device is properly soldered.
Exceeding the maximum junction temperature (Tj) rating can lead to reduced device lifespan, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain reliability and performance.
To handle ESD protection for the NB3H5150-01MNTXG, it's recommended to follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits in the design. Additionally, ensure that the device is properly grounded during assembly and testing.
The recommended soldering conditions for the NB3H5150-01MNTXG involve using a soldering temperature of 260°C (max) for a maximum of 10 seconds. It's also recommended to use a soldering iron with a temperature-controlled tip and to avoid applying excessive force or pressure during the soldering process.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB3H5150-01MNTXG Overview

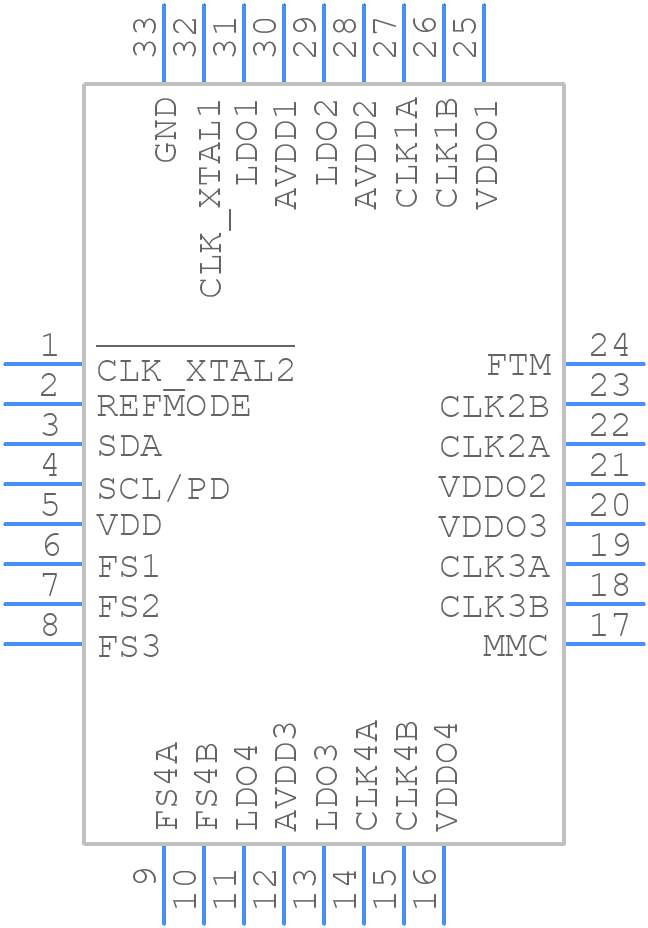

Use the download button to access the NB3H5150-01MNTXG schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB3H5,
or try a keyword search, such as Clock Generators
