The recommended PCB layout for optimal thermal performance involves using a 2-layer or 4-layer board with a solid ground plane, placing thermal vias under the device, and using a thermal pad on the bottom of the package. A minimum of 2 oz copper thickness is recommended.
To ensure reliable operation at high temperatures, it's essential to follow the recommended operating conditions, use a suitable thermal design, and implement adequate cooling mechanisms. Additionally, consider using a thermal interface material (TIM) to improve heat transfer between the device and the heat sink.
Exceeding the maximum junction temperature (TJMAX) can lead to reduced device reliability, increased thermal resistance, and potentially even device failure. It's crucial to ensure that the device operates within the recommended temperature range to maintain its performance and lifespan.
To handle ESD protection for the NB3H63143G00MNR2G, follow proper handling and storage procedures, use ESD-protective packaging, and implement ESD protection circuits or devices in the system design. Additionally, ensure that the device is powered down during handling and assembly.
When assembling and reworking the NB3H63143G00MNR2G on a PCB, follow the recommended soldering temperature and time profiles, use a suitable solder paste, and ensure that the device is properly cleaned and dried after assembly. Avoid using excessive force or heat during rework, as this can damage the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB3H63143G00MNR2G Overview

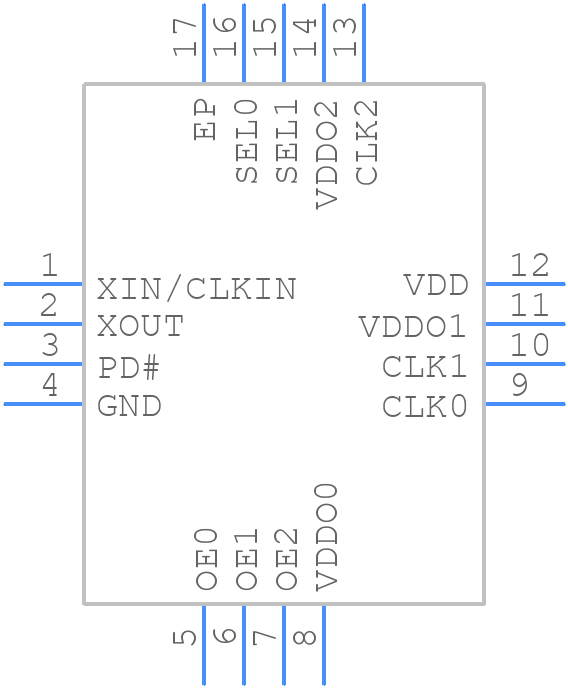

Use the download button to access the NB3H63143G00MNR2G schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like NB3H6,
or try a keyword search, such as Clock Generators
