NB3H83905CMNG - onsemi

Description: 6 LVTTL/LVCMOS Output Clock copies; Supply Operation VDD VDDO: 1.8 V0.2 V, 2.5 V 5% or 3.3 V 5% Core VDD 1.8 V equal or greater than VDD0: 1.8 V, 2.5 V, 3.3 V Nom. ; Crystal Oscillator Interface; Crystal Input Frequency Range: 3 MHz to 40 MHz; Clock Input Frequency Range: 3 MHz to 100 MHz; LVCMOS compatible Enable Inputs; 5 V Tolerant Enable Inputs; Tight Output to Output Skew: 80 ps Max; Synchronous Output Enable; Phase Noise Floor 160 dBc (at 1 MHz); Industrial Temp. Rang; 16 Pin TSSOP or SOIC Package; Pb

Download NB3H83905CMNG Model

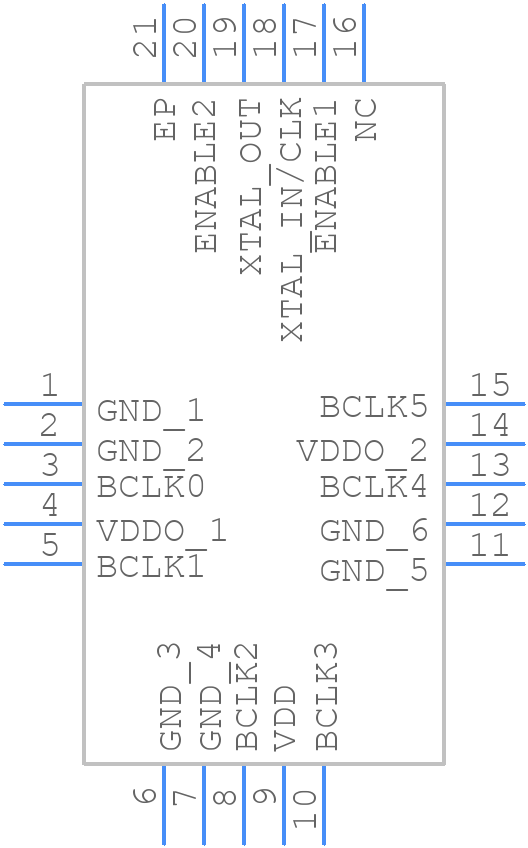

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB3H83905CMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN20 4x4, 0.5P CASE 485BH−01 ISSUE O
click to zoom
3D Models
NB3H83905CMNG - onsemi  - 3D model - Quad Flat No-Lead - QFN20 4x4, 0.5P CASE 485BH−01 ISSUE O
click to zoom

NB3H83905CMNG Details

  • Manufacturer Part Number:

    NB3H83905CMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN20 4X4, 0.5P

  • Package Description:

    QFN-20

  • Pin Count:

    20

  • Manufacturer Package Code:

    485BH

  • Country Of Origin:

    Malaysia

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.88

  • JESD-30 Code:

    S-XQCC-N20

  • Length:

    4 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

NB3H83905CMNG Frequently Asked Questions (FAQs)

  • A 2-layer or 4-layer PCB with a solid ground plane and thermal vias is recommended. Ensure a minimum of 1 oz copper thickness and a thermal relief pattern under the device.
  • Implement a robust thermal management system, including a heat sink and thermal interface material. Ensure good airflow and avoid thermal hotspots.
  • Exceeding the maximum Tj rating can lead to reduced lifespan, increased thermal resistance, and potential device failure. Ensure proper thermal management to stay within the recommended operating range.
  • Use ESD-protective packaging, wrist straps, and mats during handling and assembly. Ensure all personnel handling the device are grounded.
  • Use a soldering iron with a temperature range of 250°C to 260°C. Apply a soldering flux and ensure a soldering time of 3-5 seconds maximum.
