NB3L204KMNG - onsemi

Description: Maximum Input Clock Frequency > 350 MHz; 2.5 V ±5% / 3.3 V ±10% Supply Voltage Operation; 4 HCSL Outputs; DB400H Compliant; Individual OE Control Pin for Each Bank of Outputs; 100 ps Max Output−to−Output Skew Performance; 1 ns Typical Propagation Delay; 450 ps Typical Rise and Fall Times; 80 fs Maximum Additive Phase Jitter RMS; PCIE Gen 3 and Gen 4 Compliant

Download NB3L204KMNG Model

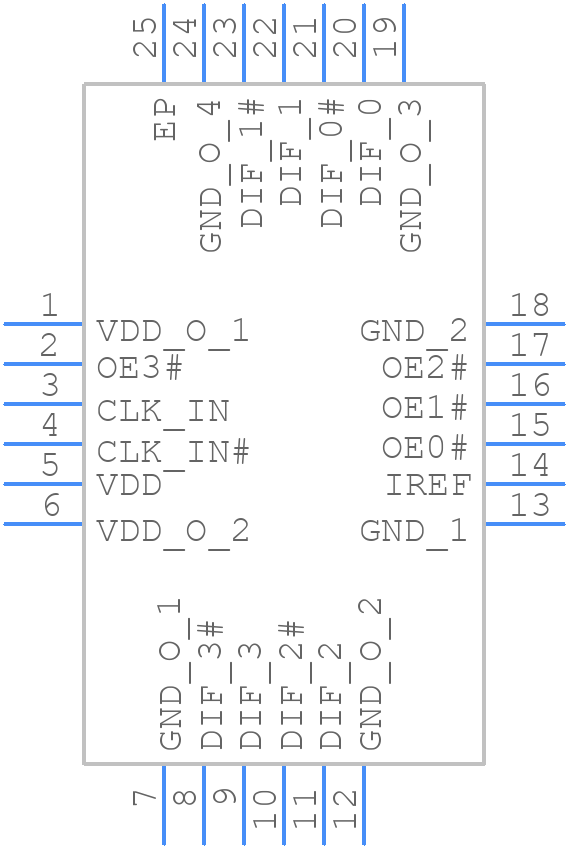

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB3L204KMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24 4x4 0.5P CASE 485DJ
click to zoom
3D Models
NB3L204KMNG - onsemi  - 3D model - Quad Flat No-Lead - QFN24 4x4 0.5P CASE 485DJ
click to zoom

NB3L204KMNG Details

  • Manufacturer Part Number:

    NB3L204KMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN-24

  • Package Description:

    QFN-24

  • Manufacturer Package Code:

    485DJ

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Date Of Intro:

    2016-04-01

  • Manufacturer:

    onsemi

  • YTEOL:

    6.9

  • Additional Feature:

    ALSO OPERATES AT 2.97 TO 3.63 V SUPPLY

  • Family:

    NB3

  • Input Conditioning:

    DIFFERENTIAL

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Number of True Outputs:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    150 mA

  • Prop. Delay@Nom-Sup:

    1.4 ns

  • Propagation Delay (tpd):

    1.4 ns

  • Same Edge Skew-Max (tskwd):

    0.1 ns

  • Seated Height-Max:

    0.9 mm

  • Supply Voltage-Max (Vsup):

    2.625 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

  • fmax-Min:

    350 MHz

NB3L204KMNG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NB3L204KMNG is 2.3V to 3.6V.
  • To ensure signal integrity, use a 50-ohm transmission line, keep the signal traces short, and use a common ground plane. Also, use a series resistor to match the impedance of the transmission line.
  • The NB3L204KMNG supports data transfer rates up to 3.2 Gbps.
  • Power sequencing is not critical for the NB3L204KMNG, but it's recommended to power up the VCC pin before the VCCA pin to ensure proper device operation.
  • The thermal resistance (RθJA) of the NB3L204KMNG is 55°C/W.
