NB3M8302CDG - onsemi

Description: Input Clock Frequency up to 200 MHz; Low Output to Output Skew: 25 ps typical; Low Part to Part Skew: 250 ps typical; Low Additive RMS Phase Jitter; Input Clock Accepts LVCMOS/ LVTTL Levels

Download NB3M8302CDG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

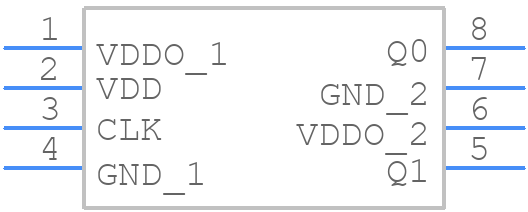

Symbol
NB3M8302CDG - onsemi - PCB symbol
click to zoom
PCB Footprints
NB3M8302CDG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NB3M8302CDG - onsemi - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NB3M8302CDG Details

  • Manufacturer Part Number:

    NB3M8302CDG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.05

  • Family:

    NB3

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.016 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    2

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    3.3 ns

  • Propagation Delay (tpd):

    3.3 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.085 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NB3M8302CDG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB3M8302CDG involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • To ensure the stability of the output voltage, it is recommended to use a minimum output capacitance of 10uF, and to place the output capacitor close to the device. Additionally, the output voltage can be stabilized by adding a 10nF capacitor in parallel with a 10uF capacitor.
  • The NB3M8302CDG can handle a maximum input voltage of 18V. However, it is recommended to operate the device within the recommended input voltage range of 7V to 15V for optimal performance and reliability.
  • The NB3M8302CDG has built-in overcurrent protection and thermal shutdown features. However, it is recommended to add external overcurrent protection using a fuse or a current limiter, and to ensure good airflow around the device to prevent overheating.
  • The NB3M8302CDG is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output current and voltage at high temperatures, and to ensure good airflow around the device to prevent overheating.
