NB3M8304CDR2G - onsemi

Description: Clock Fanout Buffer (Distribution) IC 1:4 200 MHz 8-SOIC (0.154", 3.90mm Width)

Download NB3M8304CDR2G Model

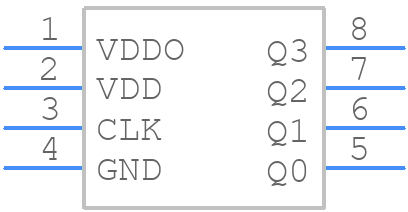

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB3M8304CDR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom
3D Models
NB3M8304CDR2G - onsemi  - 3D model - Small Outline Packages - SOIC-8 NB CASE 751-07 ISSUE AK
click to zoom

NB3M8304CDR2G Details

  • Manufacturer Part Number:

    NB3M8304CDR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    13 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.05

  • Family:

    NB3

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.016 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Equivalence Code:

    SOP8,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    3.3 ns

  • Propagation Delay (tpd):

    3.7 ns

  • Qualification Status:

    Not Qualified

  • Same Edge Skew-Max (tskwd):

    0.045 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

NB3M8304CDR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB3M8304CDR2G should minimize signal trace lengths, use a solid ground plane, and keep the input and output traces separate to reduce noise and crosstalk. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper biasing, make sure to connect the VCC pin to a stable 3.3V power supply, and the VEE pin to a stable -3.3V power supply. Also, ensure that the input common-mode voltage is within the recommended range of 1.5V to 2.5V.
  • The NB3M8304CDR2G is rated for operation from -40°C to +125°C, but it's recommended to operate it within the -20°C to +85°C range for optimal performance and reliability.
  • The NB3M8304CDR2G has built-in ESD protection, but it's still recommended to follow proper ESD handling procedures during assembly and testing, such as using an ESD wrist strap or mat, and storing the devices in anti-static packaging.
  • The recommended input impedance for the NB3M8304CDR2G is 50 ohms, but it can operate with input impedances up to 100 ohms with some degradation in performance.
