NB3N51034DTR2G - onsemi

Description: Uses 25 MHz Fundamental Mode Parallel Resonant Crystal; Power Down Mode; 4 Low Skew HCSL or LVDS Outputs; OE Tri-States Outputs; Spread of -0.5%, -1.0%, -1.5% and No Spread; PCIe Gen 1, Gen 2, Gen 3 and Gen 4 Jitter Compliant; Low Phase Noise; Operating Range 3.3 V ±5%; Industrial Temperature Rangeˆ-40°C to +85°C; Functionally Compatible with IDT557-05, IDT5V41066, IDT5V41236; These are Pb-Free Devices

Download NB3N51034DTR2G Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

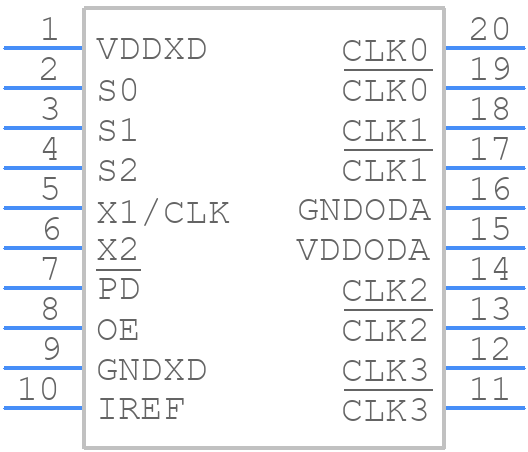

NB3N51034DTR2G - onsemi - PCB symbol
