NB3N51054DTR2G - onsemi

Description: • Uses 25 MHz Fundamental Crystal or Reference Clock Input • Four Low Skew HCSL or LVDS Outputs • I2C Support with Read Back Capability • Spread of −0.35%, −0.5% and No Spread • Individual Output Enable/Disable Control through I2C • PCIe Gen 1, Gen 2, Gen 3, Gen 4 Compliant • Typical Phase Jitter @ 100 MHz (Integrated 12 kHz to 20 MHz): 0.5 ps • Typical Cycle−Cycle Jitter @ 100 MHz (10k cycles): 20 ps • Phase Noise @ 100 MHz: Offset Noise Power 100 Hz −104 dBc/Hz 1 kHz −121 dBc/Hz 10 kHz −131 d

Download NB3N51054DTR2G Model
Schematic

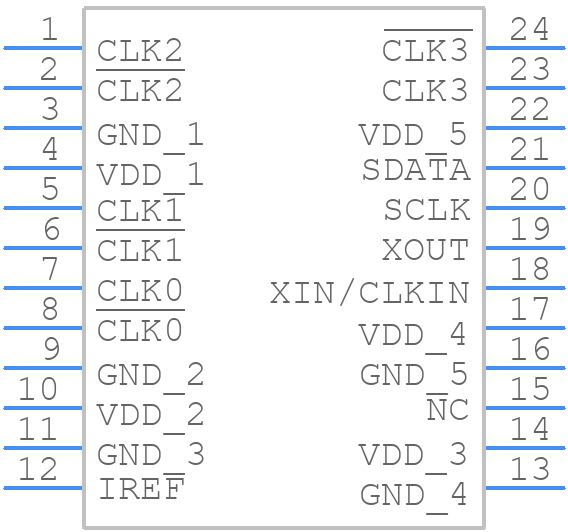

symbols
