NB3N511DG footprint, schematic symbol and 3D model by onsemi

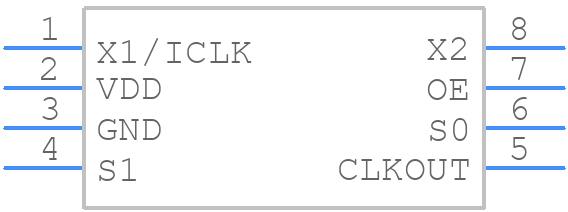

Symbol

click to zoom

PCB Footprints

click to zoom

3D Models

click to zoom

Datasheet Download Datasheet
Stock & Prices Price & Stock for NB3N511DG
Part Number NB3N511DG
Manufacturer onsemi
Pin Count 8
Part Category Integrated Circuit
Package Category Small Outline Packages
Footprint Name Small Outline Packages - NB3N511DG
Released Date Jan 17, 2019
Last Modified Date Mar 7, 2023 4:10 PM UTC
Pinout / Pin List Click Here (Member Only)

NB3N511DG Details

Manufacturer Part Number:
NB3N511DG
Brand Name:
ON Semiconductor
Pbfree Code:
Yes
Rohs Code:
Yes
Part Life Cycle Code:
Obsolete
Package Description:
SOIC-8
Pin Count:
8
Manufacturer Package Code:
751-07
ECCN Code:
EAR99
HTS Code:
8542.39.00.60
Manufacturer:
onsemi
YTEOL:
0
Additional Feature:
IT ALSO OPEARTES AT 5V NOMINAL SUPPLY
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e3
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Output Clock Frequency-Max:
200 MHz
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Primary Clock/Crystal Frequency-Nom:
32 MHz
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Voltage-Max:
3.465 V
Supply Voltage-Min:
3.135 V
Supply Voltage-Nom:
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
MATTE TIN
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
uPs/uCs/Peripheral ICs Type:
CLOCK GENERATOR, OTHER

NB3N511DG Frequently Asked Questions (FAQs)

A good PCB layout for the NB3N511DG involves keeping the input and output traces short and separate, using a solid ground plane, and placing decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable voltage source (e.g., 3.3V or 5V) and decouple it with a 0.1uF capacitor. The EN pin should be tied to VCC or a logic signal for enable/disable functionality. The VIN pin should be connected to a stable voltage source or a voltage regulator output.
The maximum current rating for the NB3N511DG is 1A. However, it's recommended to derate the current to 0.8A for reliable operation and to prevent overheating.
To protect the NB3N511DG from overvoltage and undervoltage conditions, use a voltage regulator or a voltage supervisor to ensure the input voltage remains within the recommended operating range (2.7V to 5.5V). Additionally, consider adding overvoltage protection (OVP) and undervoltage protection (UVP) circuits to prevent damage from voltage transients.
The recommended operating temperature range for the NB3N511DG is -40°C to 125°C. However, the device can operate up to 150°C for short periods during power-up or power-down sequences.

Trust Checks

Community Provided

System Verified

Community Approved

NB3N511DG Overview

Use the download button to access the NB3N511DG schematic symbol, PCB footprint, and 3D model.
