Description:HCSL Differential Output; Typical Period RMS jitter of 1.5 ps; Uses 25 MHz Fundamental Mode Parallel Resonant Crystal; Industrial Temperature Range -40C to +85C; Operating Range 3.3 V +/- 10%; PCIe Gen1, Gen2, Gen3, Gen4, QPI, UPI Jitter Compliant
A good PCB layout for the NB3N5573DTR2G involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure the stability of the output voltage, it's essential to use a suitable output capacitor with a low equivalent series resistance (ESR) and a high capacitance value. A 10uF to 22uF ceramic capacitor is recommended. Additionally, the input voltage should be well-regulated, and the device should be operated within its recommended operating conditions.
The NB3N5573DTR2G is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range. It's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
Yes, the NB3N5573DTR2G is suitable for high-reliability applications. It's manufactured using a robust process and has undergone rigorous testing to ensure its reliability. However, it's essential to follow proper design and manufacturing guidelines to ensure the device operates within its recommended specifications.
To troubleshoot issues with the NB3N5573DTR2G, start by verifying the input voltage and current, and ensuring that the device is operated within its recommended specifications. Check the PCB layout and ensure that it meets the recommended guidelines. Use an oscilloscope to measure the output voltage and current, and check for any signs of oscillation or instability.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB3N5573DTR2G Overview

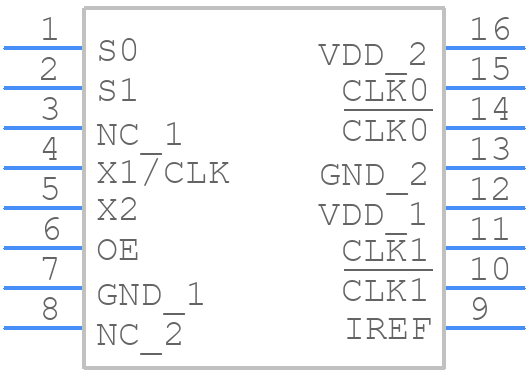

Use the download button to access the NB3N5573DTR2G schematic symbol, PCB footprint, and 3D model.
