NB3U1548CDG - onsemi

Description: Low skew 1:4 Fanout Buffer; Supports 3.3 V, 2.5 V, 1.8 V and 1.5 V Power Supplies; LVCMOS Input and Output Levels; 3.6 V Overvoltage Tolerance at the Clock and Control Inputs; Supports Clock Frequencies up to 160 MHz; LVCMOS Compatible Control Input for Output Disable; Output Disabled to a High Impedance State; Pb−Free and RoHS Compliant

Download NB3U1548CDG Model

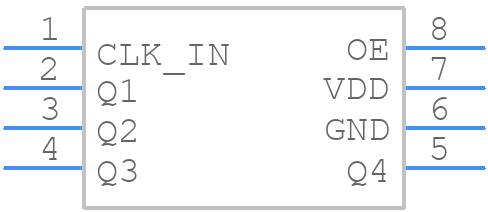

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB3U1548CDG - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - SOIC−8 NB CASE 751−07 ISSUE AK_2024
click to zoom
3D Models
NB3U1548CDG - onsemi  - 3D model - Small Outline Packages - SOIC−8 NB CASE 751−07 ISSUE AK_2024
click to zoom

NB3U1548CDG Details

  • Manufacturer Part Number:

    NB3U1548CDG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC-8

  • Package Description:

    SOIC-8

  • Manufacturer Package Code:

    751-07

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.05

  • Family:

    NB3

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e3

  • Length:

    4.9 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Max I(ol):

    0.012 A

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Number of True Outputs:

    4

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Prop. Delay@Nom-Sup:

    3.5 ns

  • Propagation Delay (tpd):

    3.5 ns

  • Same Edge Skew-Max (tskwd):

    0.25 ns

  • Seated Height-Max:

    1.75 mm

  • Supply Voltage-Max (Vsup):

    3.465 V

  • Supply Voltage-Min (Vsup):

    3.135 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

  • fmax-Min:

    160 MHz

NB3U1548CDG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB3U1548CDG involves keeping the input and output traces as short as possible, using a solid ground plane, and minimizing the distance between the device and the decoupling capacitors. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
  • To ensure proper powering and decoupling of the NB3U1548CDG, use a high-quality power supply with low noise and ripple, and decouple the device with 0.1uF and 10uF capacitors as close to the device as possible. Additionally, use a 10nF capacitor to decouple the VCC pin.
  • The NB3U1548CDG can operate up to 1.5 GHz, but the maximum frequency of operation depends on the specific application and the quality of the PCB layout. In general, it's recommended to operate the device at frequencies below 1.2 GHz for optimal performance.
  • To troubleshoot issues with the NB3U1548CDG, start by checking the power supply and decoupling, then verify the input and output signals using an oscilloscope. Check for any signs of overheating, and ensure the device is properly soldered and mounted on the PCB. If issues persist, consult the onsemi support resources and application notes.
  • The NB3U1548CDG has a maximum junction temperature of 150°C. To ensure reliable operation, keep the device temperature below 125°C by using a heat sink or a thermal pad, and ensure good airflow around the device. Avoid overheating the device, as it can lead to reduced performance and lifespan.
