Description:Very Low Output−to−Output Skew < 50 ps; Supply Voltage: 3.3 V, 2.5 V or 1.8 V; Available in 8−Pin TSSOP; Operating Temperature Range: –40°C to 105°C; Low Additive Jitter; fmax = 250 MHz for 3.3 V; fmax = 180 MHz for 2.5 V; fmax = 133 MHz for 1.8 V; These Devices are Pb−Free and are RoHS Compliant; High−Performance 1:4 LVCMOS Clock Buffer
A good PCB layout for the NB3V1104CMTTBG involves keeping the input and output traces short and wide, using a solid ground plane, and placing decoupling capacitors close to the device. It's also recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
To ensure proper powering and decoupling of the NB3V1104CMTTBG, use a high-quality power supply with low noise and ripple, and add decoupling capacitors (e.g., 0.1uF and 10uF) close to the device. Also, ensure that the power and ground pins are connected to a solid power and ground plane on the PCB.
The NB3V1104CMTTBG has an operating temperature range of -40°C to 125°C. However, it's recommended to operate the device within a temperature range of -20°C to 85°C for optimal performance and reliability.
To handle ESD protection for the NB3V1104CMTTBG, use ESD-sensitive handling procedures during assembly and installation, and consider adding ESD protection devices (e.g., TVS diodes) on the input and output lines. Also, ensure that the PCB design includes ESD protection features, such as ESD diodes and resistors.
The recommended input and output termination for the NB3V1104CMTTBG depends on the specific application. However, a general guideline is to use a series resistor (e.g., 50Ω) and a parallel capacitor (e.g., 10pF) for input termination, and a series resistor (e.g., 50Ω) and a parallel capacitor (e.g., 10pF) for output termination.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB3V1104CMTTBG Overview

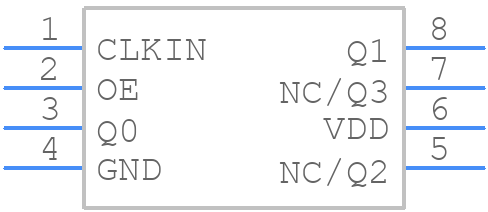

Use the download button to access the NB3V1104CMTTBG schematic symbol, PCB footprint, and 3D model.
