NB3V1106CDTR2G - onsemi

Description: High−Performance 1:6 LVCMOS Clock Buffer; Very Low Output−to−Output Skew < 50 ps; Supply Voltage: 3.3 V, 2.5 V or 1.8 V; Available in 14−Pin TSSOP; Operating Temperature Range: –40°C to 105°C; Low Additive Jitter; fmax = 250 MHz for 3.3 V; fmax = 180 MHz for 2.5 V; fmax = 133 MHz for 1.8 V; These Devices are Pb−Free and are RoHS Compliant

Download NB3V1106CDTR2G Model

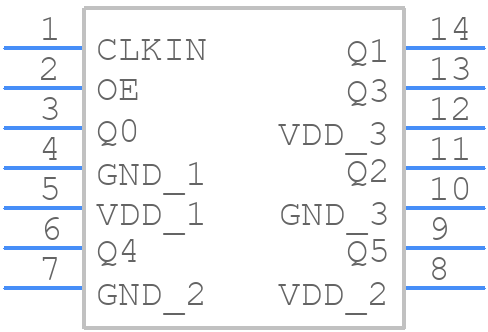

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB3V1106CDTR2G - onsemi PCB footprint - Small Outline Packages - Small Outline Packages - NB3V1106CDTR2G
click to zoom
3D Models
NB3V1106CDTR2G - onsemi  - 3D model - Small Outline Packages - NB3V1106CDTR2G
click to zoom

NB3V1106CDTR2G Details

  • Manufacturer Part Number:

    NB3V1106CDTR2G

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    TSSOP-14 WB

  • Manufacturer Package Code:

    948G

  • Country Of Origin:

    Philippines

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    18 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    6.75

  • Additional Feature:

    ALSO OPERATES AT 2.5V AND 3.3V VCC NOMINAL SUPPLY

  • Family:

    NB3V

  • Input Conditioning:

    STANDARD

  • JESD-30 Code:

    R-PDSO-G14

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Logic IC Type:

    LOW SKEW CLOCK DRIVER

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    14

  • Number of True Outputs:

    6

  • Operating Temperature-Max:

    105 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Characteristics:

    3-STATE

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR

  • Peak Reflow Temperature (Cel):

    260

  • Propagation Delay (tpd):

    3.5 ns

  • Same Edge Skew-Max (tskwd):

    0.075 ns

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    1.89 V

  • Supply Voltage-Min (Vsup):

    1.71 V

  • Supply Voltage-Nom (Vsup):

    1.8 V

  • Surface Mount:

    YES

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

  • fmax-Min:

    250 MHz

NB3V1106CDTR2G Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB3V1106CDTR2G involves keeping the input and output traces short and wide, using a solid ground plane, and placing the device close to the power source. Additionally, it's recommended to use a 10uF capacitor between the VIN and GND pins to filter out noise.
  • To ensure stability, make sure to follow the recommended PCB layout, use a sufficient output capacitor (at least 10uF), and keep the input voltage within the recommended range. Also, avoid using long input traces and keep the device away from noise sources.
  • The NB3V1106CDTR2G can handle input voltages up to 18V, but it's recommended to keep the input voltage within the recommended range of 2.7V to 5.5V for optimal performance and reliability.
  • The NB3V1106CDTR2G is rated for operation up to 125°C, but it's recommended to derate the output current and input voltage at higher temperatures to ensure reliability and prevent overheating.
  • The output voltage of the NB3V1106CDTR2G can be calculated using the formula: VOUT = (R1 / R2) * (VIN - VREF), where R1 and R2 are the resistors in the feedback network, VIN is the input voltage, and VREF is the internal reference voltage (typically 0.8V).
