NB4N111KMNG - onsemi

Description: NB4N111KMNG, Clock Buffer CML, LVDS, LVMOS, LVPECL, LVTTL HCSL, LVDS, 1-Input, 32-Pin QFN

Download NB4N111KMNG Model

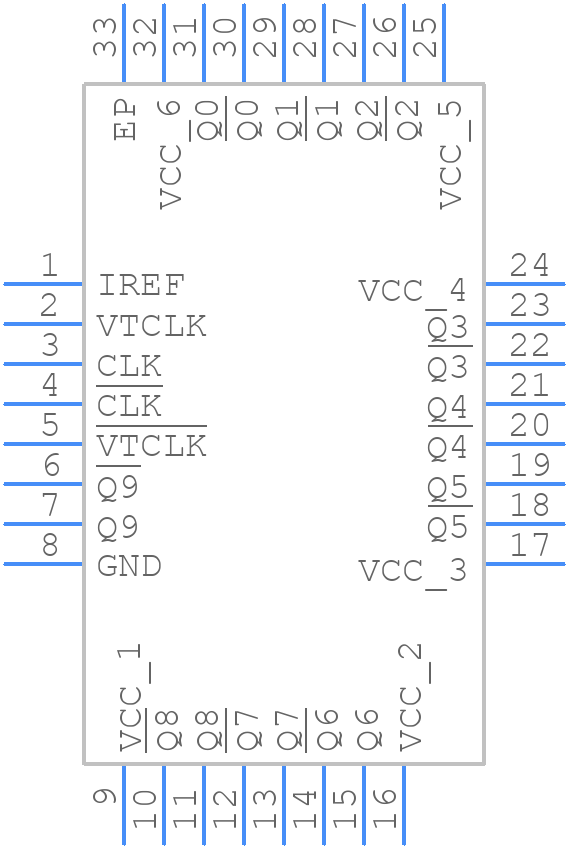

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB4N111KMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN-32 5X5 CASE 488AM -
click to zoom
3D Models
NB4N111KMNG - onsemi  - 3D model - Quad Flat No-Lead - QFN-32 5X5 CASE 488AM -
click to zoom

NB4N111KMNG Details

  • Manufacturer Part Number:

    NB4N111KMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Obsolete

  • Part Package Code:

    QFN32, 5x5, 0.5P, 3.1x3.1EP

  • Pin Count:

    32

  • Manufacturer Package Code:

    488AM

  • Country Of Origin:

    Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    0

  • Delay-Max:

    1.1 ns

  • Interface IC Type:

    PECL TO CML TRANSLATOR

  • JESD-30 Code:

    S-XQCC-N32

  • JESD-609 Code:

    e3

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Bits:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    32

  • Operating Temperature-Max:

    70 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Latch or Register:

    NONE

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max:

    3.6 V

  • Supply Voltage-Min:

    3 V

  • Supply Voltage-Nom:

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    OTHER

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    5 mm

NB4N111KMNG Frequently Asked Questions (FAQs)

  • The recommended operating voltage range for the NB4N111KMNG is 2.7V to 5.5V.
  • To ensure proper biasing, connect the VCC pin to a stable voltage source, and decouple it with a 10uF capacitor to ground. Also, ensure the input signals are within the recommended voltage range.
  • The maximum allowable power dissipation for the NB4N111KMNG is 150mW.
  • To prevent ESD damage, handle the NB4N111KMNG by the body or pins, avoid touching the pins, and use an anti-static wrist strap or mat when handling the device.
  • The recommended storage temperature range for the NB4N111KMNG is -65°C to 150°C.
