ADJUSTABLE OUTPUT VOLTAGE RANGE FROM 0.604 V TO 5.5 V
Analog IC - Other Type:
SWITCHING REGULATOR
Control Technique:
PULSE WIDTH MODULATION
Input Voltage-Max:
22 V
Input Voltage-Min:
5 V
Input Voltage-Nom:
12 V
JESD-30 Code:
S-XXSS-N16
JESD-609 Code:
e3
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Functions:
1
Number of Terminals:
16
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
UNSPECIFIED
Package Shape:
SQUARE
Package Style:
SPECIAL SHAPE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1 mm
Surface Mount:
YES
Switcher Configuration:
BUCK
Switching Frequency-Max:
600 kHz
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Matte Tin (Sn)
Terminal Form:
NO LEAD
Terminal Position:
UNSPECIFIED
Time@Peak Reflow Temperature-Max (s):
40
Width:
3 mm
NB671GQ-Z Frequently Asked Questions (FAQs)
A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power paths.
Ensure that the output capacitor has a low ESR, and the input capacitor has a high capacitance. Also, add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
Although the datasheet specifies a maximum input voltage of 5.5V, it's recommended to limit the input voltage to 5V to ensure reliable operation and prevent damage to the IC.
While the datasheet recommends a specific inductor value and type, you can use a different inductor as long as it meets the required inductance and current rating. However, this may affect the converter's performance and efficiency.
The output voltage ripple can be estimated using the formula: ΔVout = (Iout * ESL) / (Cout * fsw), where ESL is the equivalent series inductance of the output capacitor, Cout is the output capacitance, and fsw is the switching frequency.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB671GQ-Z Overview

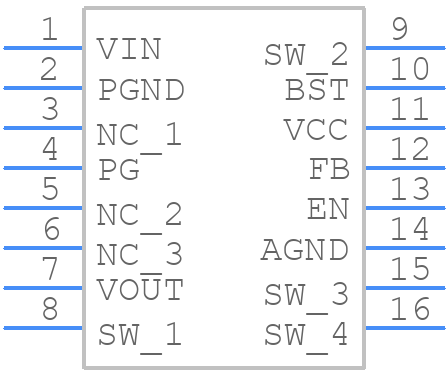

Use the download button to access the NB671GQ-Z schematic symbol, PCB footprint, and 3D model.
