A 4-layer PCB with a solid ground plane and a separate power plane is recommended. Keep the input and output capacitors close to the IC, and use short, wide traces for the power lines.
Ensure that the output capacitor has a low ESR, and the input capacitor has a high capacitance. Also, add a small ceramic capacitor (e.g., 10nF) between the VIN and GND pins to filter out high-frequency noise.
The NB679GD-Z can operate reliably up to 85°C ambient temperature, but derating is recommended above 70°C to ensure long-term reliability.
While the datasheet recommends a specific inductor value, you can use a different value or type, but ensure it meets the required inductance and current rating. Consult the inductor manufacturer's datasheet and perform thorough testing to ensure compatibility.
Use an oscilloscope to check the input and output waveforms, and verify that the input voltage is within the recommended range. Check for proper PCB layout, component selection, and soldering quality. Consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB679GD-Z Overview

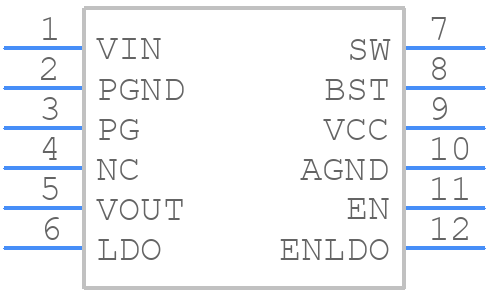

Use the download button to access the NB679GD-Z schematic symbol, PCB footprint, and 3D model.
