NB6L295MMNG - onsemi

Description: Linearity +/- 20ps Maximum ; Maximum Input Clock Frequency >1.5 GHz Typical; Programmable Range: 0 ns to 6 ns Dual Mode; Programmable Range: 0 ns to 11 ns Entended Mode;; Delay Range: 3.2 ns to 9.0 ns Dual Mode; Delay Range: 6.2 ns to 17.8 ns Extended Mode; 11 ps Delay Increments; INx/INxb Inputs Accept LVPECL, LVDS Levels; 3-Wire Serial Data Interface (SDI)

Download NB6L295MMNG Model

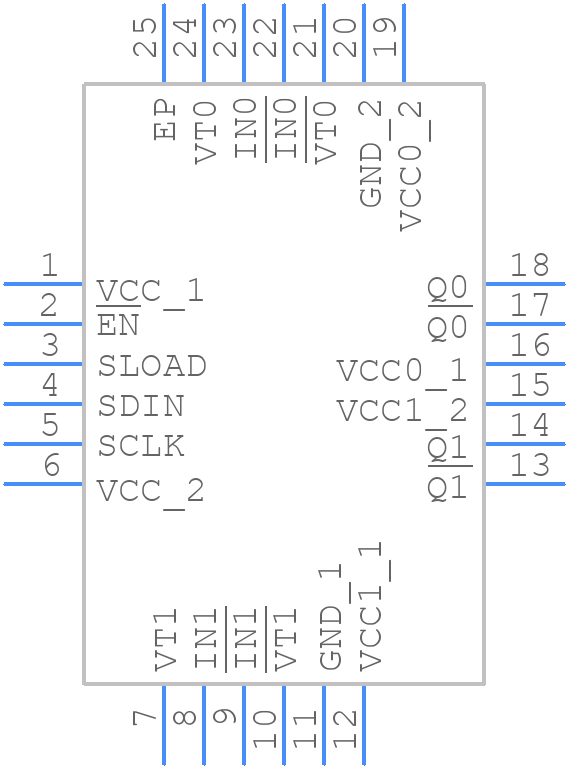

Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
PCB Footprints
NB6L295MMNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24, 4x4, 0.5P CASE 485L ISSUE B
click to zoom
3D Models
NB6L295MMNG - onsemi  - 3D model - Quad Flat No-Lead - QFN24, 4x4, 0.5P CASE 485L ISSUE B
click to zoom

NB6L295MMNG Details

  • Manufacturer Part Number:

    NB6L295MMNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN24, 4x4, 0.5P

  • Pin Count:

    24

  • Manufacturer Package Code:

    485L-01

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Family:

    6L

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Logic IC Type:

    ACTIVE DELAY LINE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Taps/Steps:

    511

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Impedance-Nom (Z0):

    50 Ω

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC20,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    215 mA

  • Programmable Delay Line:

    YES

  • Prop. Delay@Nom-Sup:

    21 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Delay-Nom (td):

    16.6 ns

  • Width:

    4 mm
