NB6L295MNG - onsemi

Description: Linearity +/- 20ps Maximum ; Maximum Input Clock Frequency >1.5 GHz Typical; Programmable Range: 0 ns to 6 ns Dual Mode; Programmable Range: 0 ns to 11 ; 11 ps Delay Increments; INx/INxb Inputs Accept LVPECL, LVDS Levels; 3-Wire Serial Data Interface (SDI)

Download NB6L295MNG Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

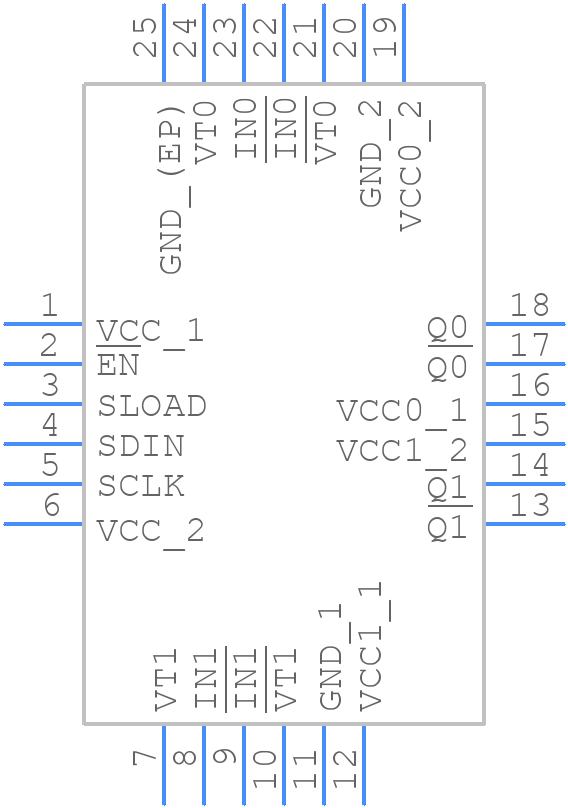

NB6L295MNG - onsemi - PCB symbol
click to zoom
PCB Footprints
NB6L295MNG - onsemi PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - QFN24, 4x4, 0.5P CASE 485L ISSUE B
click to zoom
3D Models
NB6L295MNG - onsemi - 3D model - Quad Flat No-Lead - QFN24, 4x4, 0.5P CASE 485L ISSUE B
click to zoom

NB6L295MNG Details

  • Manufacturer Part Number:

    NB6L295MNG

  • Brand Name:

    onsemi

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    QFN24, 4x4, 0.5P

  • Package Description:

    QFN-24

  • Pin Count:

    24

  • Manufacturer Package Code:

    485L-01

  • Country Of Origin:

    Thailand

  • HTS Code:

    8542.39.00.60

  • Factory Lead Time:

    16 Weeks

  • Manufacturer:

    onsemi

  • YTEOL:

    7

  • Family:

    6L

  • JESD-30 Code:

    S-XQCC-N24

  • JESD-609 Code:

    e3

  • Length:

    4 mm

  • Logic IC Type:

    ACTIVE DELAY LINE

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    2

  • Number of Taps/Steps:

    511

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Polarity:

    COMPLEMENTARY

  • Package Body Material:

    UNSPECIFIED

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16SQ,20

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Packing Method:

    RAIL

  • Peak Reflow Temperature (Cel):

    260

  • Power Supply Current-Max (ICC):

    170 mA

  • Programmable Delay Line:

    YES

  • Prop. Delay@Nom-Sup:

    19.6 ns

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    3.6 V

  • Supply Voltage-Min (Vsup):

    2.375 V

  • Supply Voltage-Nom (Vsup):

    2.5 V

  • Surface Mount:

    YES

  • Technology:

    ECL

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Matte Tin (Sn) - annealed

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Total Delay-Nom (td):

    18.2 ns

  • Width:

    4 mm

NB6L295MNG Frequently Asked Questions (FAQs)

  • A good PCB layout for the NB6L295MNG involves keeping the input and output traces short and separate, using a solid ground plane, and placing the input and output capacitors close to the device. Additionally, it's recommended to use a low-ESR capacitor for the output filter capacitor.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output voltage should be set within the recommended range, and the input voltage should be within the specified operating range. It's also crucial to ensure that the device is operated within the recommended temperature range.
  • The NB6L295MNG can operate in ambient temperatures ranging from -40°C to 125°C. However, the device's performance and reliability may degrade if operated at the extreme ends of this range for extended periods.
  • Yes, the NB6L295MNG is suitable for high-reliability and automotive applications. It's AEC-Q100 qualified and meets the requirements for automotive applications. However, it's essential to follow the recommended design guidelines and testing procedures to ensure the device meets the specific application requirements.
  • To troubleshoot issues with the NB6L295MNG, start by verifying the input voltage, output voltage, and current consumption. Check for any signs of overheating, and ensure that the device is operated within the recommended specifications. If the issue persists, consult the datasheet and application notes for guidance, or contact onsemi's technical support team for assistance.
