A good PCB layout for the NB6L611MNG involves keeping the input and output traces short and separate, using a solid ground plane, and placing the decoupling capacitors close to the device. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
To ensure proper biasing, connect the VCC pin to a stable voltage source, and the VEE pin to a stable voltage sink. The recommended bias voltage is 3.3V or 5V, and the input voltage should be within the specified range. Also, ensure that the input impedance is matched to the device's input impedance.
The maximum operating frequency of the NB6L611MNG is 6.4 GHz. However, the device can be used at frequencies up to 10 GHz with some degradation in performance.
The NB6L611MNG has a thermal pad on the bottom of the package, which should be connected to a thermal ground plane on the PCB. A heat sink or thermal interface material can be used to improve heat dissipation. Ensure that the device is operated within the specified temperature range.
The recommended input and output impedance matching for the NB6L611MNG is 50 ohms. However, the device can be matched to other impedances using external components, such as resistors, inductors, and capacitors.
Trust Checks
This model has been built in collaboration with the manufacturer.
Manufacturer Collaborated
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
NB6L611MNG Overview

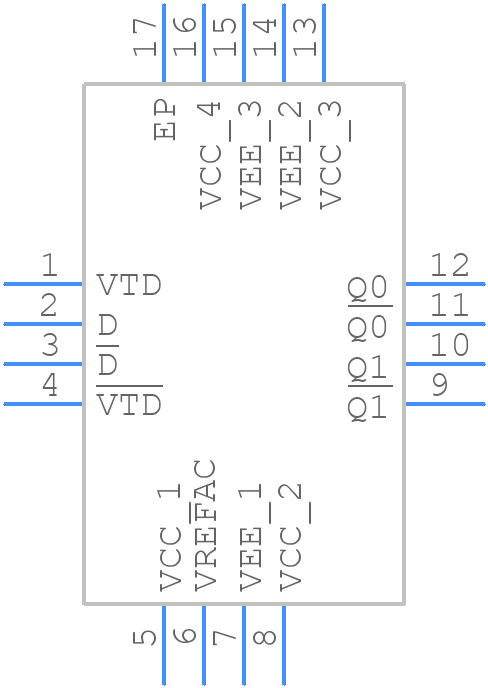

Use the download button to access the NB6L611MNG schematic symbol, PCB footprint, and 3D model.
